  6. EJOT® frame anchor type RA-Z

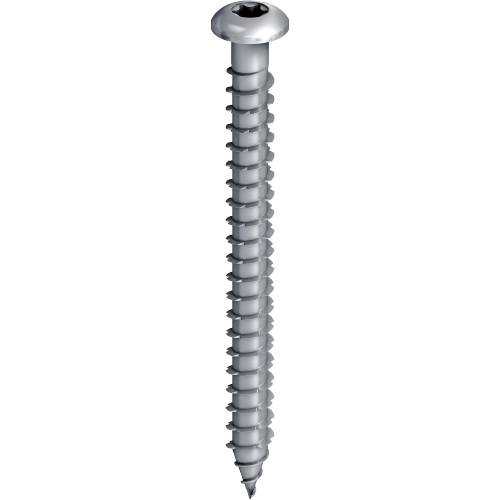

EJOT® frame anchor type RA-Z

Rahmenanker_RA-Z

Specification

  • Applications

    • Direct fastening of plastic and wooden windows in masonry and concrete, without any anchors
    • Especially suited for PVC outer Frame without reinforcing steel rods
    • Efficient spaced fixing of windows and doors
    • Installation according to the RAL quality association guidelines for windows and doors

  • Properties

    • Sleek and broad supported head (Ø12 mm)
    • Burglary resistant (RC2), tested on steel-free plastic windows
    • Tested as fastening element acc. to the ETB guidelines "Building components which protect against falling from heights"
    • Reduced forming moulding and exact fit due to perfect thread geometry
    • Fast installation, reliable anchoring
    • Case-hardened steel

  • Technical Data

    • Head diameter: 12 mm
    • Drive: T30

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Material Unit
    Frame anchor RA-Z 7.5x120 2271120601 7.5 120.0 Zinc plated, blue passivated 100

    Specifications

    ø
    7.5
    Length
    120.0
    Material
    Zinc plated, blue passivated
    Drive
    TORX T30
    Orderidentifier
    Frame anchor RA-Z 7.5x120
    Unit
    100
    Frame anchor RA-Z 7.5x150 2271150601 7.5 150.0 Zinc plated, blue passivated 100

    Specifications

    ø
    7.5
    Length
    150.0
    Material
    Zinc plated, blue passivated
    Drive
    TORX T30
    Orderidentifier
    Frame anchor RA-Z 7.5x150
    Unit
    100
    Frame anchor RA-Z 7.5x180 2271180601 7.5 180.0 Zinc plated, blue passivated 100

    Specifications

    ø
    7.5
    Length
    180.0
    Material
    Zinc plated, blue passivated
    Drive
    TORX T30
    Orderidentifier
    Frame anchor RA-Z 7.5x180
    Unit
    100
    Frame anchor RA-Z 7.5x210 2271210601 7.5 210.0 Zinc plated, blue passivated 100

    Specifications

    ø
    7.5
    Length
    210.0
    Material
    Zinc plated, blue passivated
    Drive
    TORX T30
    Orderidentifier
    Frame anchor RA-Z 7.5x210
    Unit
    100
    Frame anchor RA-Z 7.5x250 2271250601 7.5 250.0 Zinc plated, blue passivated 50

    Specifications

    ø
    7.5
    Length
    250.0
    Material
    Zinc plated, blue passivated
    Drive
    TORX T30
    Orderidentifier
    Frame anchor RA-Z 7.5x250
    Unit
    50
    Frame anchor RA-Z 7.5x300 2271300601 7.5 300.0 Zinc plated, blue passivated 50

    Specifications

    ø
    7.5
    Length
    300.0
    Material
    Zinc plated, blue passivated
    Drive
    TORX T30
    Orderidentifier
    Frame anchor RA-Z 7.5x300
    Unit
    50
