T-FAST® Plus wood screws

Discover the latest generation

High-quality fastening technology in timber construction

With T-FAST® Plus, EJOT has developed the next generation of wood screws with an innovative, distinctive screw tip. T-FAST® Plus offers a unique processing experience: fast tip bite, easy screw control and significantly reduced wood splitting ensure safe and efficient working – both in the workshop and on the construction site.

T-FAST® Plus can be used in a variety of ways to connect and fasten components made of wood, wood-based materials and sheet steel to components made of wood and wood-based materials in load-bearing and non-load-bearing areas.

Application range

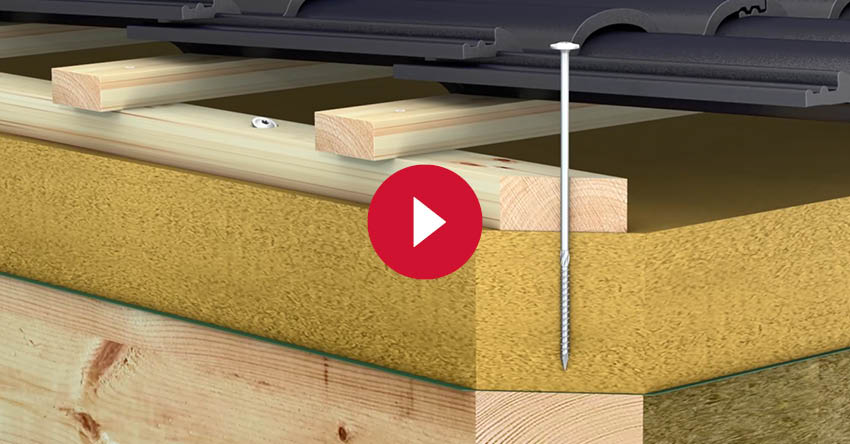

Roof: truss rafter to purlin
Beam layer: plate on ceiling joists
Wall structure: planking on substructure
Interior finishing: substructure fastening

T-FAST® Plus JW2 carbon steel wood screws are protected against corrosion by galvanic zinc coating. In load-bearing areas, they may be used in service class 1 (heated interior). T-FAST® Plus JW2 wood screws with d > 4.0 mm may also be used in service class 2 (roofed, non-weathered area with contact to the outside air) according to DIN EN 1995-1-1.

T-FAST® Plus JW4 stainless steel wood screws may be used in service class 3 (weathered areas under suitable environmental conditions). Exceptions are structures with increased corrosion requirements such as swimming pools or industrial plants with increased corrosive strain.

YOU ARE INTERESTED IN EJOT T-FAST® PLUS WOOD SCREWS?

You are welcome to write us a mail.
construction@ejot.com

Show less Show More

Specification and advantages:

TX drive for
- optimum torque transmission
- simple and controlled processing without a cam-out effect.

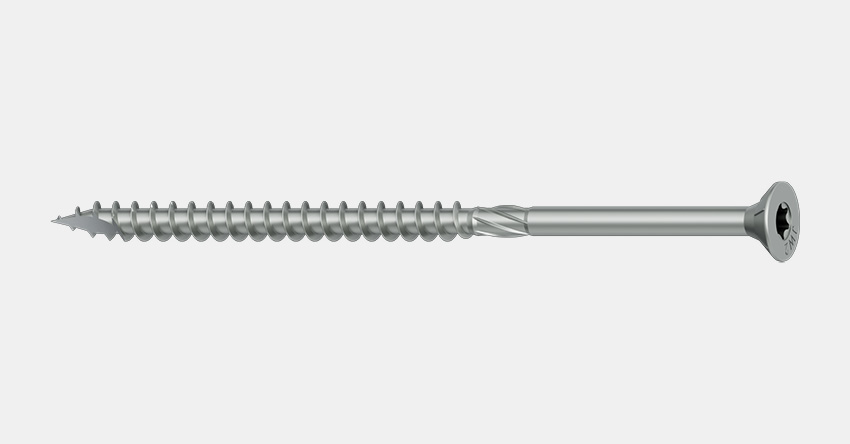

T-FAST® Plus STR countersunk head screws with milling ribs on the underside for
- simplified countersinking of the head
- Surface fixed installation

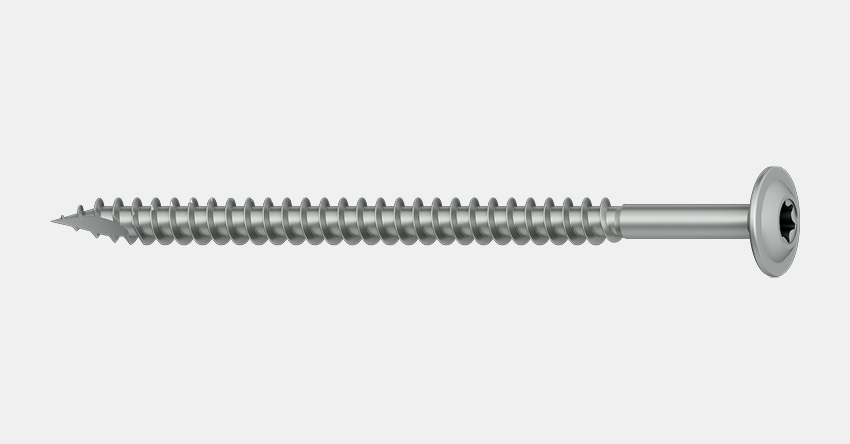

T-FAST® Plus STS wafer head screws with pressed-on washer
- Wafer head increases the pull-through capacity

Special screw point geometry
- fast biting
- reduced wood splitting
- fast processing
- prevents damage to the component

full and partial thread
- Partial thread for tightening the components to be fastened

Partial thread with end mill at the transition to the non-threaded fastener shaft
- reduces the installation torque
- facilitates the installation process

Optimised thread geometries for
- improved prevention of over-tightening of short screws
- Accelerated processing for long screw

T-FAST® Plus JW2 made of carbon steel with galvanic zinc coating, min. 5 μm coating thickness and dry lubricant
T-FAST® Plus JW4 made of stainless steel CRC II or stainless steel A2 with dry lubricant

Try out the new T-FAST® Plus now, because quick, material-friendly and secure installation saves time and money.If you are looking for additional T-FAST® Plus variants beyond the standard delivery range listed below , please contact us.
