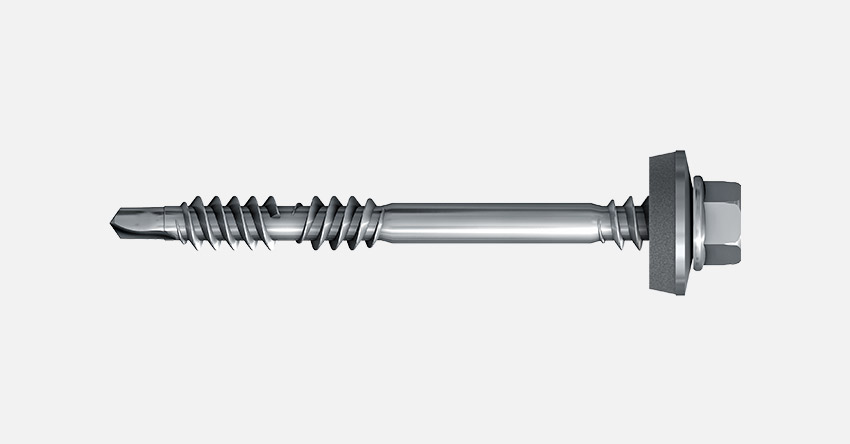

EJOT spacer bolt – without pre-drilling

Right, left, right – done!

The new spacer bolt with right-left-right thread for a perfect fastening of profiled ceiling elements and lesenes to insulated cassette wall systems. It saves time since a pre-drilling of the outer sheet is omitted and an easy disassembly of the facade system is possible.

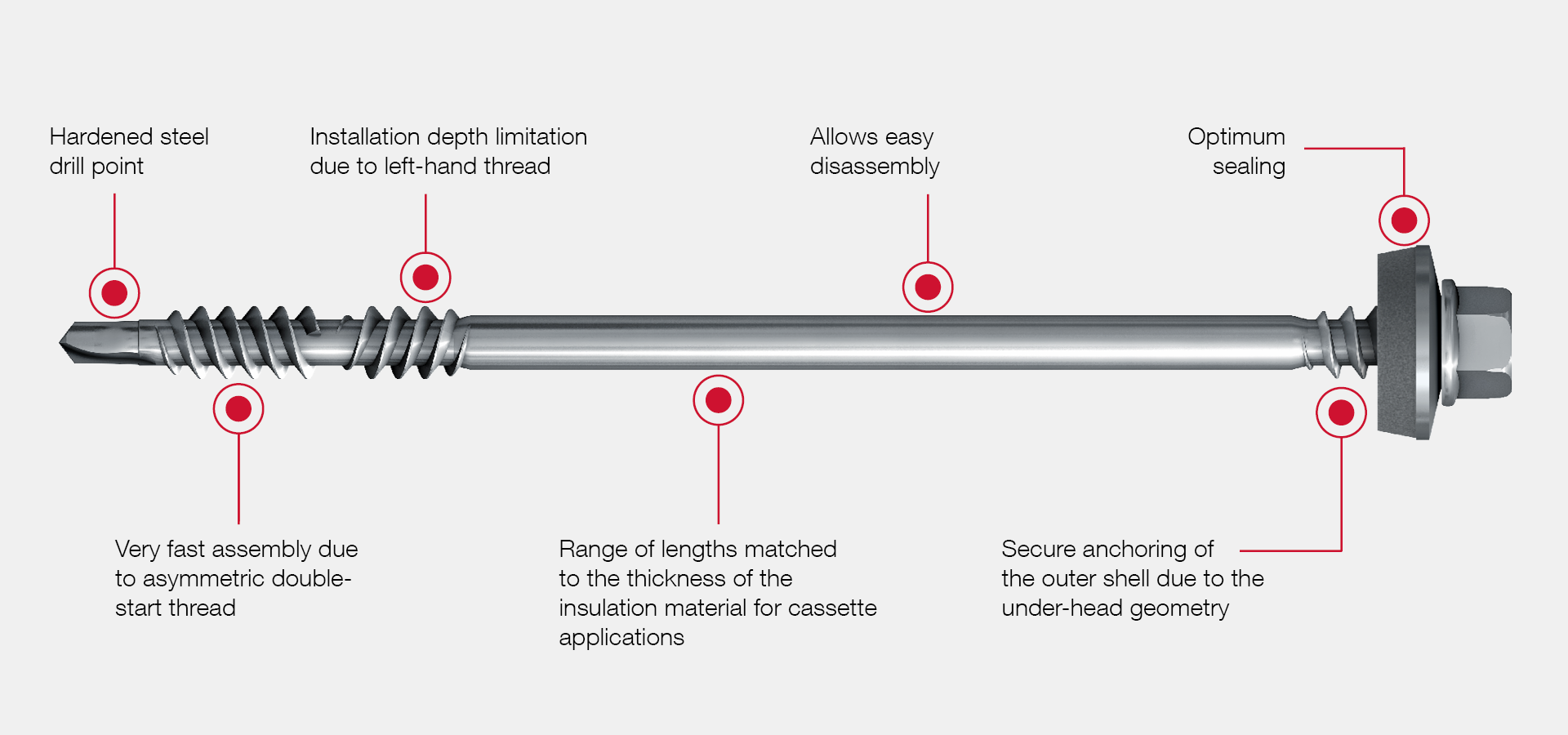

Features spacer bolt

​​​​​​​Applications

  • ​​​​​​​Spacer bolt for fastening profiled steel and aluminium sheets to cassette bars with insulation
  • Fastening lesenes to insulated cassette bars
  • Also suitable for fastening shear-deformable wall claddings
  • For 40 and 80 mm insulations


Places

  • ​​​​​​​A2 stainless steel with hardened steel drill point
  • Stainless steel sealing washer
  • Pre-assembled sealing washer
  • Special thread geometry allows a quick removal of the screw
  • No pre-drilling of the outer leaf required
DO YOU NEED MORE INFORMATION ABOUT THE EJOT SPACER BOLT?

You are welcome to write us a mail.
construction@ejot.com


Further information on the EJOT spacer bolt can be found in the following product data sheet.



Watch the following video to see how easy it is
