EJOT offers the appropriate rain screen anchor solution

Long-term safety & easy processing with the KERI system

For retroactive securing of three-layer panels

For buildings from the 1970s and 1980s that were constructed using the multilayer prefabricated concrete wall construction method, there is now a need for extensive renovation.

Before a new facade can be installed, the most important renovation step is to secure the rain screen. The EJOT KERI system is the ideal solution.

The special features of the system

Absorption of transverse forces of the rain screens (vertical load transfer of the existing building structure)
Absorption of transverse forces from the new facade system, e.g. ETICS or rear ventilated facade, (vertical load transfer of the new facade system)

A complete system for renovation
The KERI system

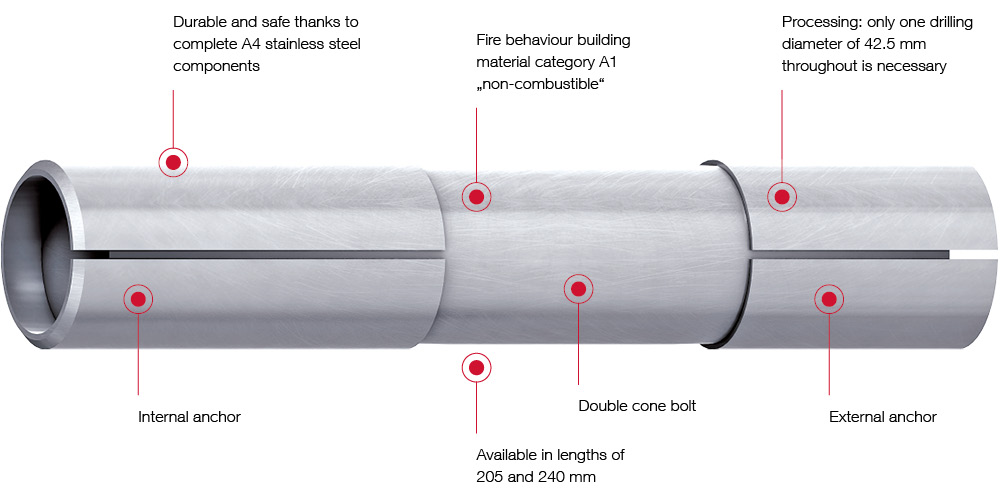

Advantages of the KERI system

Excellent rated values for transverse and flexural strength due to the structural shape of the anchor for a small minimum number of anchors
No temperature restrictions in installation, as it is a purely mechanical system – without mortar
Long-term safety and longevity, no signs of fatigue due to the exclusive use of stainless steel components
Fire behaviour according to building material category A1 "non-combustible", as without flammable components
Processing: only one drilling diameter of 42.5 mm throughout is necessary
Less noise and vibrations compared to the hammer drilling process through the use of core drilling technology with a diamond drill bit
No consequential damage by wet drilling, as a water metering device is used (water consumption per hole <0.5 litres)

Specification

Fastening elements approved by the building authorities for subsequent securing of three-layer rain screens
Anchors made of stainless steel (A4), consisting of double cone bolts and two anchor sleeves
Diameter of 40 mm
Available in lengths of 205 mm and 240 mm (further lengths available upon inquiry)

YOU ARE INTERESTED IN THE KERI-SYSTEM?

You are welcome to write us a mail.
construction@ejot.com

Further information on the KERI anchor can be found in the documents available for download

EJOT® Services

Initial sizing
Arrangement of a structural engineer
Arrangement of an installation contractor
Device instruction/assembly demonstration
Provision of a device including the necessary accessories
Fast delivery of the anchors to your location
