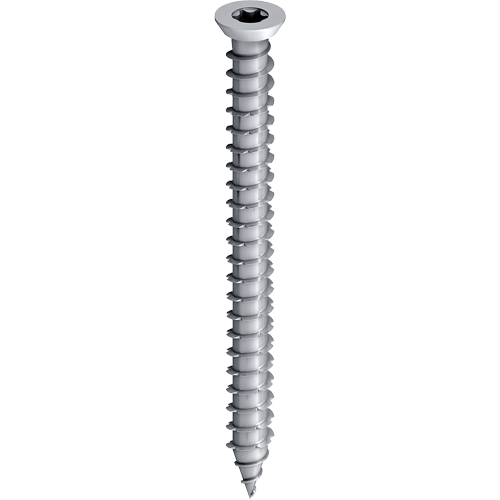

EJOT® frame anchor type RA-P

Specification

  • Applications

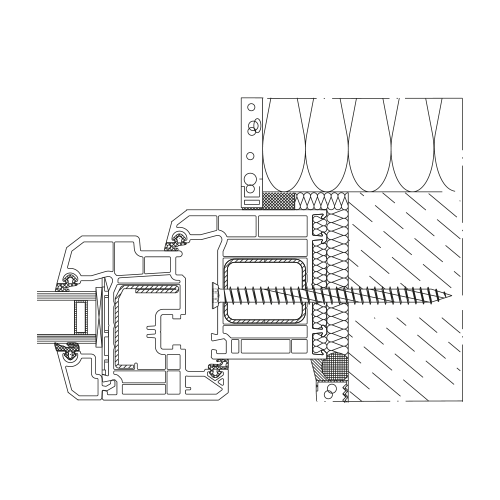

    • Direct fastening of plastic windows in masonry and concrete, without any anchors
    • Efficient spaced fixing of windows and doors
    • Installation according to the RAL quality association guidelines for windows and doors
  • Properties

    • Burglary resistant (RC2), tested on steel-free plastic windows
    • Tested as fastening element acc. to the ETB guidelines "Building components which protect against falling from heights"
    • Reduced forming moulding and exact fit due to perfect thread geometry
    • Fast installation, reliable anchoring
    • Including white RAL 9010 push-on caps
    • Case-hardened steel
  • Technical specifications

    • Head diameter: 11 mm
    • Drive: T30
