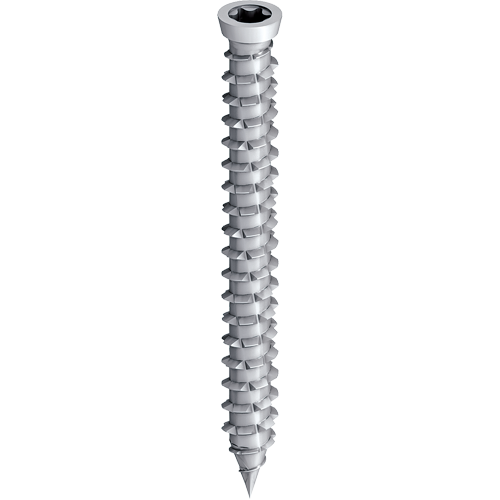

EJOT® frame anchor type RA-U

Specification

  • Applications

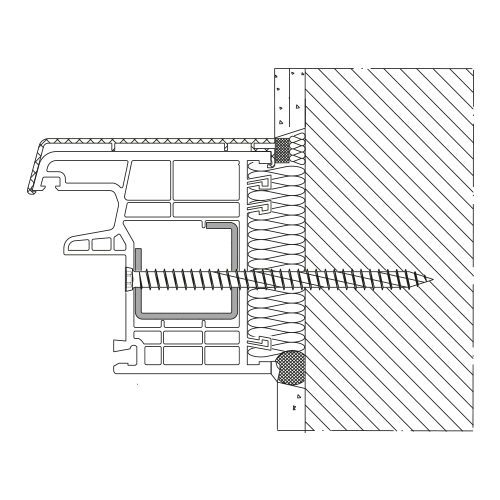

    • Direct fastening of plastic and wooden windows in masonry and concrete, without any anchors
    • Efficient spaced fixing of windows and doors
    • Installation according to the RAL quality association guidelines for windows and doors
  • Properties

    • Burglary resistant (RC2), tested on steel-free plastic windows
    • Reduced forming moulding and exact fit due to perfect thread geometry
    • Fast installation, reliable anchoring
    • Case-hardened steel
  • Technical specifications

    • Head diameter: 8.5 mm
    • Drive: T30

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Material Unit
    Frame anchor type RA-U 7.5x120 2261120601 7.5 120.0 Zinc plated, blue passivated 100

    Specifications

    ø
    7.5
    Length
    120.0
    Material
    Zinc plated, blue passivated
    Orderidentifier
    Frame anchor type RA-U 7.5x120
    Unit
    100
    Frame anchor type RA-U 7.5x135 2261135601 7.5 135.0 Zinc plated, blue passivated 100

    Specifications

    ø
    7.5
    Length
    135.0
    Material
    Zinc plated, blue passivated
    Orderidentifier
    Frame anchor type RA-U 7.5x135
    Unit
    100
