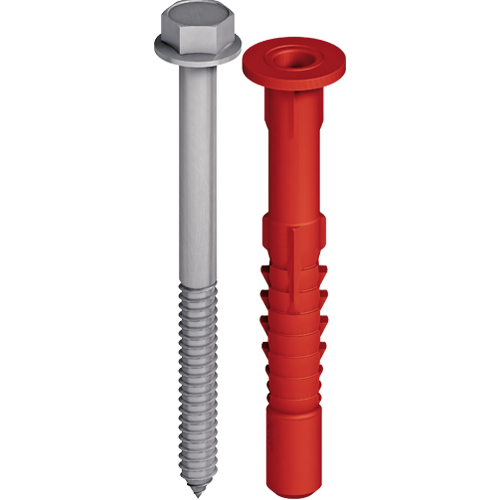

EJOT® facade anchor SDF-KB-14A

Specification

  • Applications

    • Installation of metal attachments
    • For non-supporting redundant systems according to ETAG 020
    • Suitable for the structural fastening of wall cupboards, cladding, metal angle pieces

    Notice

    For planning, please observe approval ETA-15/0027.

  • Properties

    • Hexagon head with flange
    • Approved for all common building materials
    • Reliable hold in problematic building material thanks to optimised expansion part
    • Radial expansion for reliable hold
    • Product identification through different sleeve colours
    • Double safety lock against torsion for secure installation
  • Technical specifications

    Characteristic values

    • Diameter: 14 mm
    • Drive: Hexagon A/F17
    • Drill hole depth ≥ t: 80 mm
    • Embedment depth ≥ hv: 70 mm

    Permissible loads*

    • Tensile load NRk,pin concrete > C12/15: 8.50 kN
    • Brick Mz 20-1,8, NF: 5.50 kN
    • Solid lime sand brick KS, 2 DF 20-2,0: 6.00 kN
    • Solid lime sand brick KS, 8 DF 20-1,8: 7.00 kN
    • Solid brick V, 3 DF: 3.00 kN
    • Vertically perforated brick HLz, 2 DF 28-1.2: 2.00 kN
    • Perforated sand-lime brick KSL, 8 DF 16-1.4: 2.50 kN
    • Cavity block tile made of lightweight concrete Hbl, 12 DF: 2.00 kN
    • Aerated concrete fCK ≥ 2 N/ mm2: 1.20 kN
    • Aerated concrete fCK ≥ 4 N/ mm2: 2.50 kN
    • Aerated concrete fCK ≥ 6 N/ mm2: 4:.50 kN
    • Transverse load VRk,s
      • Anchor with steel screw: 21.7 kN
      • Anchor with A4 stainless steel screw: 25.3 kN
    • Bending moment MRk,s
      • Anchor with steel screw: 62.5 Nm
      • Anchor with A4 stainless steel screw: 72.9 Nm

     *applies to temperature range 30-50 oC / 50-80 oC

Filter

Selected filters

    Orderidentifier Article Number ø mm Material Anchor length mm Clamping thickness

    tfix≤ mm

    Unit
    SDF-KB-14Ax80-V 8590080430 14.0 Carbon Steel 80.0 10.0 50

    Specifications

    ø
    14.0
    Material
    Carbon Steel
    Anchor length
    80.0
    Clamping thickness

    tfix

    10.0
    Orderidentifier
    SDF-KB-14Ax80-V
    Unit
    50
    SDF-KB-14Ax100-V 8590100430 14.0 Carbon Steel 100.0 30.0 50

    Specifications

    ø
    14.0
    Material
    Carbon Steel
    Anchor length
    100.0
    Clamping thickness

    tfix

    30.0
    Orderidentifier
    SDF-KB-14Ax100-V
    Unit
    50
