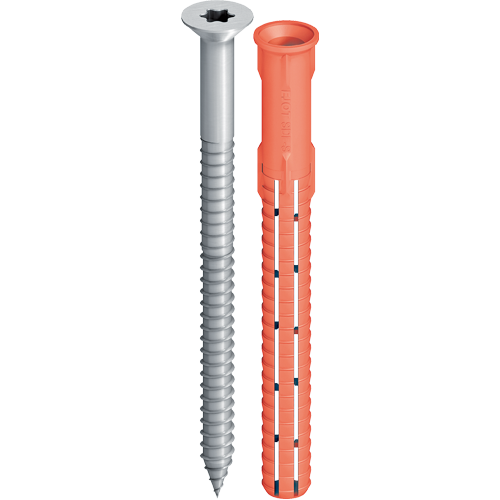

EJOT® Universal anchor SDF-S-10H

Specification

  • Applications

    • Installation of timber or metal attachments
    • For multiple fastening of non-load-bearing systems according to EAD 330284-00-0604
    • Suitable for the structural fastening of gates, doors, windows, square timber
    • For embedment in rain screens
    • For application as single fastening in concrete
  • Properties

    • Countersunk head
    • Approved for all common building materials
    • Reliable hold in problematic building materials thanks to optimised expansion part
    • Radial expansion for reliable hold
    • Product identification through different sleeve colours
    • Double safety lock against torsion for secure installation

    Base materials
    Approved for

    • Cracked concrete
    • Non-cracked concrete
    • Solid masonry
    • Hollow and perforated bricks
    • Aerated concrete

    Note
    For planning and processing, please observe ETA-10/0305 and Z-21.2-2122. Further information about parameters and loads can be found in the approvals. For bricks of unknown quality, the load-bearing capacity must be determined through pull-out tests on the structure.

  • Technical specifications

    Characteristic values

    • Diameter: 10 mm
    • Hole depth in concrete h1.1: ≥ 80 mm
    • Effective embedment depth hnom: ≥ 70 mm
    • Drill hole diameter d0: 10 mm
    • Through hole diameter of component to be attached df: ≤ 10.5 mm
    • Drive: TX40

    Admissible loads

    • Tensile load NRk,p in concrete C12/15
      • Temperature range 30 °C / 50 °C: 1.79 kN
      • Temperature range 50 °C / 80 °C: 1.59 kN
    • Brick Mz 20-1.8, NF: 1.14 kN
    • Solid sand-lime brick KS 36, NF: 1.29 kN
    • Solid sand-lime brick KS 20, 8 DF: 1.29 kN
    • Solid lightweight concrete brick V6, 2 DF: 0.57 kN
    • Vertically perforated brick HLz 12-0.9, NF: 0.57 kN
    • Perforated sand-lime brick KSL 12, 4 DF: 0.71 kN
    • Cavity block made of lightweight concrete Hbl 10, 12 DF: 0.34 kN
    • Transverse load VRk,s
      • Steel screw (γMs = 1.25): 7.48 kN
      • Stainless steel screw (γMs = 1.56): 6.99 kN
    • Bending moment MRk,s
      • Steel screw (γMs = 1.25): 14.14 Nm
      • Stainless steel screw (γMs = 1.56): 13.22 Nm
    • Compressive strength aerated concrete [N/mm2]: 30 - 50 °C
      • Aerated concrete fb ≥ 4 N/mm2: 0.54 kN
      • Aerated concrete fb ≥ 5 N/mm2: 0.71 kN
      • Aerated concrete fb ≥ 6 N/mm2: 0.89 kN
      • Aerated concrete fb ≥ 7 N/mm2: 0.89 kN

Further lengths available upon request

Filter

Selected filters

    Orderidentifier Article Number ø mm Material Length mm Clamping thickness

    tfix≤ mm

    Unit
    SDF-S-10Hx80-V 8510080420 10.0 Carbon Steel 80.0 10.0 100

    Specifications

    ø
    10.0
    Material
    Carbon Steel
    Length
    80.0
    Clamping thickness

    tfix

    10.0
    Orderidentifier
    SDF-S-10Hx80-V
    Unit
    100
    SDF-S-10Hx80-E 8510080620 10.0 Stainless Steel 80.0 10.0 100

    Specifications

    ø
    10.0
    Material
    Stainless Steel
    Length
    80.0
    Clamping thickness

    tfix

    10.0
    Orderidentifier
    SDF-S-10Hx80-E
    Unit
    100
    SDF-S-10Hx100-V 8510100420 10.0 Carbon Steel 100.0 30.0 50

    Specifications

    ø
    10.0
    Material
    Carbon Steel
    Length
    100.0
    Clamping thickness

    tfix

    30.0
    Orderidentifier
    SDF-S-10Hx100-V
    Unit
    50
    SDF-S-10Hx100-E 8510100620 10.0 Stainless Steel 100.0 30.0 50

    Specifications

    ø
    10.0
    Material
    Stainless Steel
    Length
    100.0
    Clamping thickness

    tfix

    30.0
    Orderidentifier
    SDF-S-10Hx100-E
    Unit
    50
    SDF-S-10Hx120-V 8510120420 10.0 Carbon Steel 120.0 50.0 50

    Specifications

    ø
    10.0
    Material
    Carbon Steel
    Length
    120.0
    Clamping thickness

    tfix

    50.0
    Orderidentifier
    SDF-S-10Hx120-V
    Unit
    50
    SDF-S-10Hx120-E 8510120620 10.0 Stainless Steel 120.0 50.0 50

    Specifications

    ø
    10.0
    Material
    Stainless Steel
    Length
    120.0
    Clamping thickness

    tfix

    50.0
    Orderidentifier
    SDF-S-10Hx120-E
    Unit
    50
    SDF-S-10Hx140-V 8510140420 10.0 Carbon Steel 140.0 70.0 50

    Specifications

    ø
    10.0
    Material
    Carbon Steel
    Length
    140.0
    Clamping thickness

    tfix

    70.0
    Orderidentifier
    SDF-S-10Hx140-V
    Unit
    50
    SDF-S-10Hx140-E 8510140620 10.0 Stainless Steel 140.0 70.0 50

    Specifications

    ø
    10.0
    Material
    Stainless Steel
    Length
    140.0
    Clamping thickness

    tfix

    70.0
    Orderidentifier
    SDF-S-10Hx140-E
    Unit
    50
    SDF-S-10Hx160-V 8510160420 10.0 Carbon Steel 160.0 90.0 50

    Specifications

    ø
    10.0
    Material
    Carbon Steel
    Length
    160.0
    Clamping thickness

    tfix

    90.0
    Orderidentifier
    SDF-S-10Hx160-V
    Unit
    50
    SDF-S-10Hx160-E 8510160620 10.0 Stainless Steel 160.0 90.0 50

    Specifications

    ø
    10.0
    Material
    Stainless Steel
    Length
    160.0
    Clamping thickness

    tfix

    90.0
    Orderidentifier
    SDF-S-10Hx160-E
    Unit
    50
