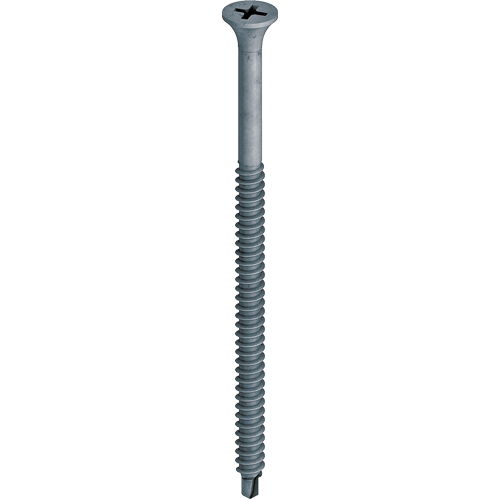

EJOT Dabo® screw TKR-4.8

Specification

  • Applications


    • To fix roofing membrane to substructures made of sheet steel ≥ 0.75 mm ≤ 1 mm

    • For combination with EJOT® stress plates


  • Properties

    • Case-hardened steel
    • Climadur coated - high-quality coating to improve corrosion protection (15 Kesternich cycles, DIN 50018, 1997)
    • Can be delivered belted for EJOT® ECOset installation tool or pre-assembled with EJOT® stress plates HTK for EJOT® ECOset HTK installation tool.
    • With bugle head
  • Technical specifications

    • Diameter: 4.8 mm
    • Drilling capacity: 1.5 mm
    • Drive: Cross recess PH 2

    Length determination (min. lengths):

    Sheet steel: Insulation thickness + 20 mm
    Timber: Insulation thickness + 30 mm

Filter

Selected filters

    Orderidentifier Article Number Unit
    TKR-4.8x35 3496700629 100

    Specifications

    Orderidentifier
    TKR-4.8x35
    Unit
    100
    TKR-4.8x50 3496800629 100

    Specifications

    Orderidentifier
    TKR-4.8x50
    Unit
    100
    TKR-4.8x60 3496900629 100

    Specifications

    Orderidentifier
    TKR-4.8x60
    Unit
    100
    TKR-4.8x70 3497000629 100

    Specifications

    Orderidentifier
    TKR-4.8x70
    Unit
    100
    TKR-4.8x80 3497100629 100

    Specifications

    Orderidentifier
    TKR-4.8x80
    Unit
    100
    TKR-4.8x90 3497200629 100

    Specifications

    Orderidentifier
    TKR-4.8x90
    Unit
    100
    TKR-4.8x100 3497300629 100

    Specifications

    Orderidentifier
    TKR-4.8x100
    Unit
    100
    TKR-4.8x110 3497400629 100

    Specifications

    Orderidentifier
    TKR-4.8x110
    Unit
    100
    TKR-4.8x120 3497500629 100

    Specifications

    Orderidentifier
    TKR-4.8x120
    Unit
    100
    TKR-4.8x140 3497700629 100

    Specifications

    Orderidentifier
    TKR-4.8x140
    Unit
    100
