EJOT® Drop-in anchor stainless steel JE+

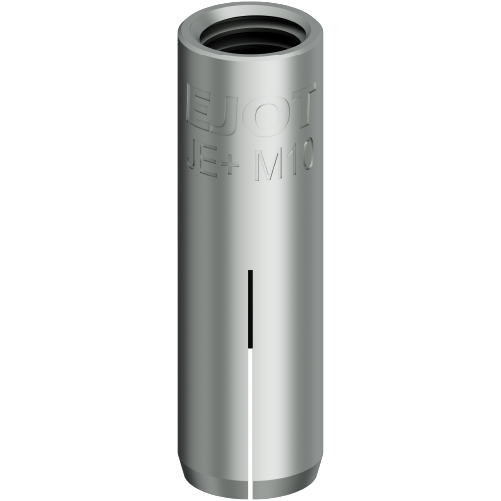

JE+_M10-Pos2

Specification

  • Applications

    • Suspension systems
    • Pipelines
    • Air ducts
    • Sprinkler systems
    • Cable racks
    • Machinery
    • Consoles
    • Ceiling girders

  • Properties

    • A4 stainless steel
    • ETA-approved drop-in anchor, ideal for suspension systems
    • Drop-in anchorx for pre-installing with an assembly tool
    • I nternal thread for metric screws and rods
    • The small required drill hole depth facilitates drilling and overhead mounting
    • Suitable for sprinkler systems
    • For dry indoor and outdoor areas

  • Technical specifications

    • Inside diameter of thread: M6/ M8 /M10/ M12/ M16/ M20
    • Nominal drill diameter d0: 8 mm/ 10 mm/ 12 mm/ 15 mm/20 mm/ 25 mm
    • Maximum Installation torque Tinst max: 4 Nm/ 8 Nm/ 15 Nm/ 35 Nm/ 60 Nm/ 100 Nm

Filter

Selected filters

    Orderidentifier Article Number Material Length mm Pilot Hole Ø d0≥ mm Unit
    Drop-in anchor JE+ 6 9650070113 Stainless Steel (A4) 25.0 8.0 100

    Specifications

    Material
    Stainless Steel (A4)
    Length
    25.0
    Pilot Hole Ø d0≥
    8.0
    Orderidentifier
    Drop-in anchor JE+ 6
    Unit
    100
    Drop-in anchor JE+ 8 9650070114 Stainless Steel (A4) 30.0 10.0 100

    Specifications

    Material
    Stainless Steel (A4)
    Length
    30.0
    Pilot Hole Ø d0≥
    10.0
    Orderidentifier
    Drop-in anchor JE+ 8
    Unit
    100
    Drop-in anchor JE+ 10 9650070115 Stainless Steel (A4) 40.0 12.0 50

    Specifications

    Material
    Stainless Steel (A4)
    Length
    40.0
    Pilot Hole Ø d0≥
    12.0
    Orderidentifier
    Drop-in anchor JE+ 10
    Unit
    50
    Einschlaganker JE+ 12 9650070116 Stainless Steel (A4) 25.0 15.0 25

    Specifications

    Material
    Stainless Steel (A4)
    Length
    25.0
    Pilot Hole Ø d0≥
    15.0
    Orderidentifier
    Einschlaganker JE+ 12
    Unit
    25
    Einschlaganker JE+ 16 9650070117 Stainless Steel (A4) 10

    Specifications

    Material
    Stainless Steel (A4)
    Length
    Pilot Hole Ø d0≥
    Orderidentifier
    Einschlaganker JE+ 16
    Unit
    10
    Einschlaganker JE+ 20 9650070118 Stainless Steel (A4) 5

    Specifications

    Material
    Stainless Steel (A4)
    Length
    Pilot Hole Ø d0≥
    Orderidentifier
    Einschlaganker JE+ 20
    Unit
    5
