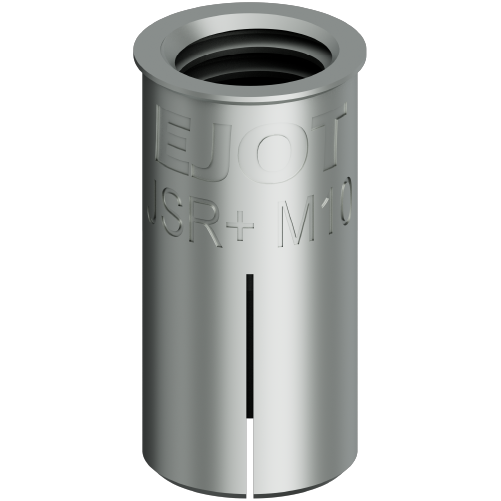

EJOT® Drop-in anchor reduced with sleeve JSR+

Applications

• For use as single fastener according to ETAG 001; Part 4 in non-cracked concrete (see ETA-13/0442)
• For use as a multiple fastener in non-supporting systems in cracked and non-cracked concrete, e.g. suspension systems, pipelines, air ducts, sprinkler systems, cable racks, machines, supports and ceiling beams (see ETA 13/0441)
• Also suitable for reinforced concrete hollow floor, natural stone and brick
• Suitable for dry indoor areas

Properties

• With collar, steel, galvanized zinc-plated
• Internal thread for metric screws and rods
• The suitable bolt length is 1-1.5 x nominal anchor length + component thickness
• The smallest required drill hole depth

Technical specifications

• Inside diameter of thread: M6/ M8 /M10/ M12
• Nominal drill diameter d₀: 8mm/ 10 mm/ 12 mm/ 15mm
• Effective Embedment depth h_ef: 25mm/30mm/ 40mm/ 50mm
• Max. installation depth L_s,max: 11 mm/ 13 mm/ 16 mm/ 23 mm
• Min. installation depth L_s,min:6 mm/ 8 mm/ 10 mm/ 12 mm
• Through hole diameter in the attached part d_f: 7 mm/  9 mm/ 12 mm/ 14 mm
• Maximum Installation torque T_inst max: 4 Nm/ 8 Nm/ 15 Nm/ 35 Nm


Performance data - LAL+6/ LAL+8/ LAL+10/ LAL+12

• Non-cracked concrete C20/25 N_Rec: 1.9 kN/ 3.6 kN/ 4.8 kN/ 6.3 kN
• Non-cracked concrete C20/25 N_Rec: 1.7 kN/ 3.1 kN/ 4.5 kN/ 7.3 kN
