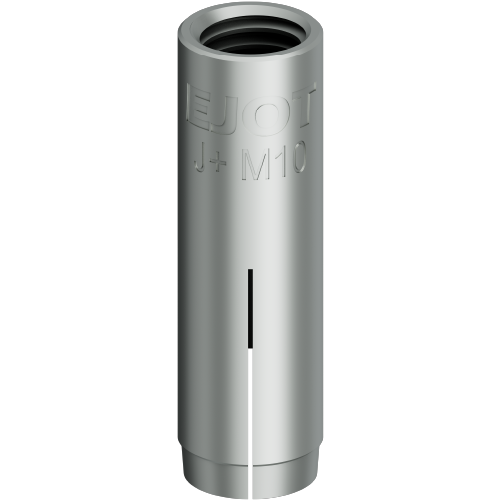

EJOT® Drop-in anchor J+

J+M10-Pos2

Specification

  • Applications

    • Suspension systems
    • Pipelines
    • Air ducts
    • Sprinkler systems
    • Cable racks
    • Machinery
    • Consoles
    • Ceiling girders

  • Properties

    • Zinc-plated steel
    • ETA-approved drop-in anchor, ideal for suspension systems
    • Drop-in anchorx for pre-installing with an assembly tool
    • I nternal thread for metric screws and rods
    • The small required drill hole depth facilitates drilling and overhead mounting
    • Suitable for sprinkler systems
    • For dry indoor use

    Base material

    Approved for

    • Cracked concrete
    • Non-cracked concrete

  • Technical specifications

    Performance data

    • Non-cracked concrete C20/25 NRec: 1.9 kN/ 3.6 kN/ 4.8 kN/ 6.3 kN
    • Non-cracked concrete C20/25 NRec: 1.7 kN/ 3.1 kN/ 4.5 kN/ 7.3 kN

Filter

Selected filters

    Orderidentifier Article Number Material Thread Length mm Pilot Hole Ø mm Unit
    Drop-in anchor J+ 6 9650070100 Zinc Plated Carbon Steel M6 25.0 8.0 100

    Specifications

    Material
    Zinc Plated Carbon Steel
    Thread
    M6
    Length
    25.0
    Pilot Hole Ø
    8.0
    Orderidentifier
    Drop-in anchor J+ 6
    Unit
    100
    Drop-in anchor J+ 8 9650070101 Zinc Plated Carbon Steel M8 30.0 10.0 100

    Specifications

    Material
    Zinc Plated Carbon Steel
    Thread
    M8
    Length
    30.0
    Pilot Hole Ø
    10.0
    Orderidentifier
    Drop-in anchor J+ 8
    Unit
    100
    Drop-in anchor J+ 10 9650070102 Zinc Plated Carbon Steel M10 40.0 10.0 50

    Specifications

    Material
    Zinc Plated Carbon Steel
    Thread
    M10
    Length
    40.0
    Pilot Hole Ø
    10.0
    Orderidentifier
    Drop-in anchor J+ 10
    Unit
    50
    Drop-in anchor J+ 12 9650070103 Zinc Plated Carbon Steel M12 50.0 15.0 25

    Specifications

    Material
    Zinc Plated Carbon Steel
    Thread
    M12
    Length
    50.0
    Pilot Hole Ø
    15.0
    Orderidentifier
    Drop-in anchor J+ 12
    Unit
    25
    Drop-in anchor J+ 16 9650070104 Zinc Plated Carbon Steel M16 65.0 20.0 10

    Specifications

    Material
    Zinc Plated Carbon Steel
    Thread
    M16
    Length
    65.0
    Pilot Hole Ø
    20.0
    Orderidentifier
    Drop-in anchor J+ 16
    Unit
    10
    Drop-in anchor J+ 20 9650070105 Zinc Plated Carbon Steel M20 80.0 25.0 5

    Specifications

    Material
    Zinc Plated Carbon Steel
    Thread
    M20
    Length
    80.0
    Pilot Hole Ø
    25.0
    Orderidentifier
    Drop-in anchor J+ 20
    Unit
    5
