EJOT® self-drilling window screw type Super-E/Tg

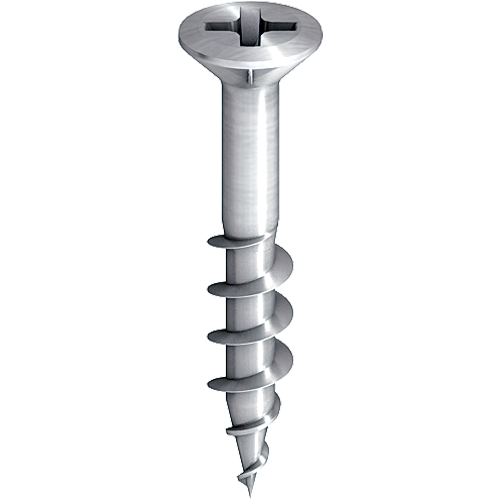

Fensterbohrschraube Super-E-Tg

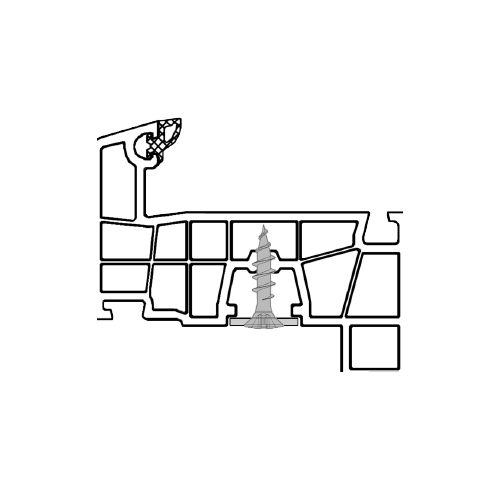

Produktbild2

Specification

  • Applications

    • Fixing gear rack and baffle gear
    • For narrow casement profiles

  • Properties

    The threadless area minimises:

    • The friction at the joint of gear rack / baffle gear
    • Permanent, easy opening and closing of the window is ensured
    • Under-head serrations for increased safety against stripping
    • Case-hardened steel

  • Technical specifications

    • Head Diameter: 7.1 mm
    • Drive: cross recess PH 2
    • Thread type: single-start screw thread
Choose a product variant

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Material Unit
    Self-drilling window screw Super-E-Tg 4.2x25 2254325607 4.2 25.0 EJOSEAL 1000

    Specifications

    ø
    4.2
    Length
    25.0
    Material
    EJOSEAL
    Drive
    Phillips PH 2
    Orderidentifier
    Self-drilling window screw Super-E-Tg 4.2x25
    Unit
    1000
    Self-drilling window screw Super-E-Tg 4.2x22 2290336607 4.2 22.0 EJOSEAL 1000

    Specifications

    ø
    4.2
    Length
    22.0
    Material
    EJOSEAL
    Drive
    Phillips PH 2
    Orderidentifier
    Self-drilling window screw Super-E-Tg 4.2x22
    Unit
    1000
