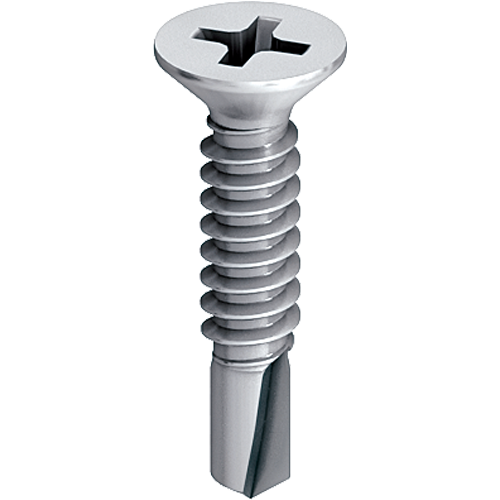

EJOT® self-drilling screw FD42

Specification

  • Applications

    • For fixing metal core and fittings to thickwalled and multi-ply PVC profiles and steel or aluminium reinforcements up to 4 mm thick.
  • Properties

    • One type of screw for up to three applications
    • Reduction of application errors
    • Reliable fastening process
    • Roll-sorted quality for automated fastening
    • Case-hardened steel
  • Technical specifications

    • Drilling capacity up to 4.0 mm
    • Head diameter: 7.5 mm
    • Drive: cross recess PH 2
    • Thread type: special thread
Order note: The EJOSEAL coating offers a higher corrosion resistance

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Unit
    Self-drilling screw FD242 3.9x16 7260822607 3.9 16.0 1000

    Specifications

    ø
    3.9
    Length
    16.0
    Material
    EJOSEAL
    Orderidentifier
    Self-drilling screw FD242 3.9x16
    Unit
    1000
    Self-drilling screw FD242 3.9x19 7260823607 3.9 19.0 1000

    Specifications

    ø
    3.9
    Length
    19.0
    Material
    EJOSEAL
    Orderidentifier
    Self-drilling screw FD242 3.9x19
    Unit
    1000
    Self-drilling screw FD242 3.9x22 7260824607 3.9 22.0 1000

    Specifications

    ø
    3.9
    Length
    22.0
    Material
    EJOSEAL
    Orderidentifier
    Self-drilling screw FD242 3.9x22
    Unit
    1000
    Self-drilling screw FD242 3.9x25 7260825607 3.9 25.0 1000

    Specifications

    ø
    3.9
    Length
    25.0
    Material
    EJOSEAL
    Orderidentifier
    Self-drilling screw FD242 3.9x25
    Unit
    1000
    Self-drilling screw FD242 3.9x32 7260826607 3.9 32.0 1000

    Specifications

    ø
    3.9
    Length
    32.0
    Material
    EJOSEAL
    Orderidentifier
    Self-drilling screw FD242 3.9x32
    Unit
    1000
    Self-drilling screw42 3.9x38 7260827607 3.9 38.0 1000

    Specifications

    ø
    3.9
    Length
    38.0
    Material
    EJOSEAL
    Orderidentifier
    Self-drilling screw42 3.9x38
    Unit
    1000
    Self-drilling screw FD242 3.9x45 7260828607 3.9 45.0 1000

    Specifications

    ø
    3.9
    Length
    45.0
    Material
    EJOSEAL
    Orderidentifier
    Self-drilling screw FD242 3.9x45
    Unit
    1000
    Self-drilling screw FD42 3.9x30 7282823607 3.9 30.0 1000

    Specifications

    ø
    3.9
    Length
    30.0
    Material
    EJOSEAL
    Orderidentifier
    Self-drilling screw FD42 3.9x30
    Unit
    1000
