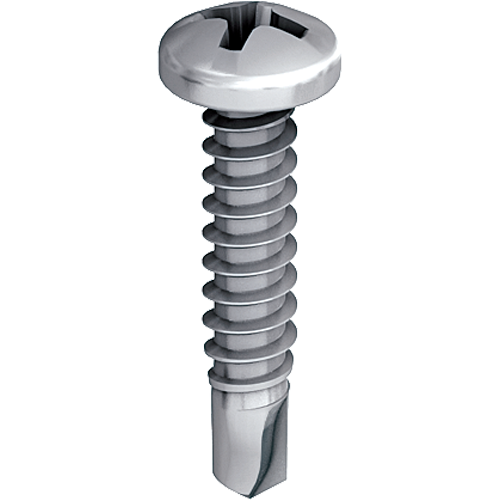

EJOT® self-drilling screw type FD1
Specification
-
Applications

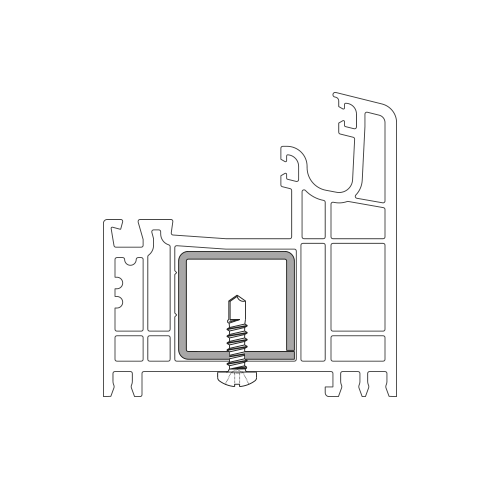

- For fixing reinforced steel up to 3.0 mm in PVC windows with tight fitting reinforcement
-
Properties
- Roll-sorted quality for automated fastening
- Case-hardened steel
-
Technical specifications
- Kopfdurchmesser: 7,5 mm
- Antrieb: Kreuzschlitz PH 2
- Gewindetyp: ST-Gewinde
Order information: Head finish in RAL colours on request; T15 recess upon request
Filter
Selected filters
| Orderidentifier | Article Number | ø mm | Length mm | Material | Unit | |
|---|---|---|---|---|---|---|
| Surub autoperforant FD1 3.9x9.5 | 7260520601 | 3.9 | 9.5 | Zinc plated, blue passivated | Phillips PH 2 | 1000 |
Specifications
|
||||||
| Surub autoperforant FD1 3.9x13 | 7260521601 | 3.9 | 13.0 | Zinc plated, blue passivated | Phillips PH 2 | 1000 |
Specifications
|
||||||
| Surub autoperforant FD1 3.9x16 | 7260522601 | 3.9 | 16.0 | Zinc plated, blue passivated | Phillips PH 2 | 1000 |
Specifications
|
