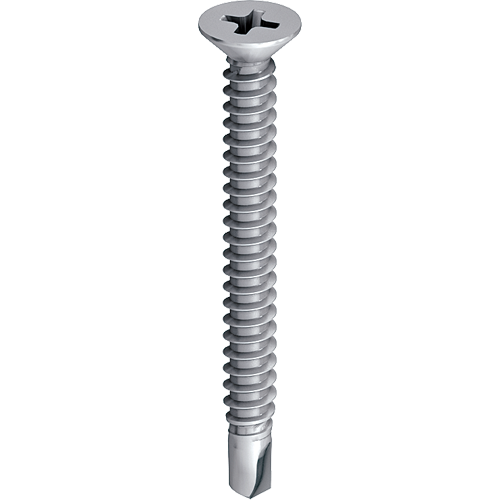

EJOT® self-drilling screw type FD2

Specification

  • Applications

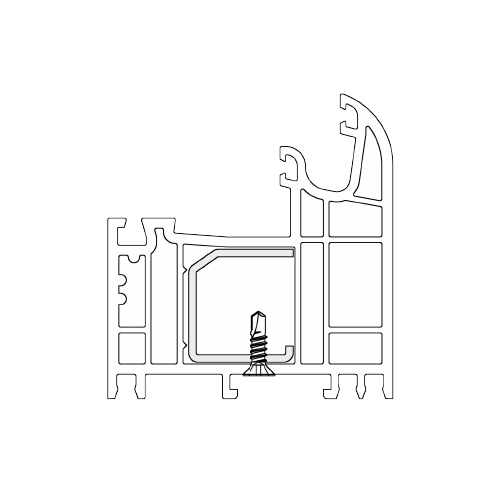

    • For fixing reinforced steel up to 3.0 mm in PVC windows with tight fitting reinforcement
    • Mounting of fittings
  • Properties

    • Burglary-resistant (RC2)
    • Roll-sorted quality for automated fastening
    • Case-hardened steel
  • Technical specifications

    • Head diameter: 7.5 mm
    • Drive: cross recess PH 2 T
    • hread type: ST thread
Order note: The EJOSEAL coating offers a higher corrosion resistance

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Material Unit
    Surub autoperforant FD2 3.9x13 7260621607 3.9 13.0 EJOSEAL 1000

    Specifications

    ø
    3.9
    Length
    13.0
    Material
    EJOSEAL
    Drive
    Phillips PH 2
    Orderidentifier
    Surub autoperforant FD2 3.9x13
    Unit
    1000
    Surub autoperforant FD2 3.9x16 7260622607 3.9 16.0 EJOSEAL 1000

    Specifications

    ø
    3.9
    Length
    16.0
    Material
    EJOSEAL
    Drive
    Phillips PH 2
    Orderidentifier
    Surub autoperforant FD2 3.9x16
    Unit
    1000
    Surub autoperforant FD2 3.9x19 7260623607 3.9 19.0 EJOSEAL 1000

    Specifications

    ø
    3.9
    Length
    19.0
    Material
    EJOSEAL
    Drive
    Phillips PH 2
    Orderidentifier
    Surub autoperforant FD2 3.9x19
    Unit
    1000
    Surub autoperforant FD2 3.9x22 7260624607 3.9 22.0 EJOSEAL 1000

    Specifications

    ø
    3.9
    Length
    22.0
    Material
    EJOSEAL
    Drive
    Phillips PH 2
    Orderidentifier
    Surub autoperforant FD2 3.9x22
    Unit
    1000
    Surub autoperforant FD2 3.9x25 7260625607 3.9 25.0 EJOSEAL 1000

    Specifications

    ø
    3.9
    Length
    25.0
    Material
    EJOSEAL
    Drive
    Phillips PH 2
    Orderidentifier
    Surub autoperforant FD2 3.9x25
    Unit
    1000
    Surub autoperforant FD2 3.9x32 7260626607 3.9 32.0 EJOSEAL 1000

    Specifications

    ø
    3.9
    Length
    32.0
    Material
    EJOSEAL
    Drive
    Phillips PH 2
    Orderidentifier
    Surub autoperforant FD2 3.9x32
    Unit
    1000
    Surub autoperforant FD2 3.9x38 7260627607 3.9 38.0 EJOSEAL 1000

    Specifications

    ø
    3.9
    Length
    38.0
    Material
    EJOSEAL
    Drive
    Phillips PH 2
    Orderidentifier
    Surub autoperforant FD2 3.9x38
    Unit
    1000
    Surub autoperforant FD2 3.9x45 7260628607 3.9 45.0 EJOSEAL 1000

    Specifications

    ø
    3.9
    Length
    45.0
    Material
    EJOSEAL
    Drive
    Phillips PH 2
    Orderidentifier
    Surub autoperforant FD2 3.9x45
    Unit
    1000
    Surub autoperforant FD2 3.9x28 7282670607 3.9 28.0 EJOSEAL 1000

    Specifications

    ø
    3.9
    Length
    28.0
    Material
    EJOSEAL
    Drive
    Phillips PH 2
    Orderidentifier
    Surub autoperforant FD2 3.9x28
    Unit
    1000
