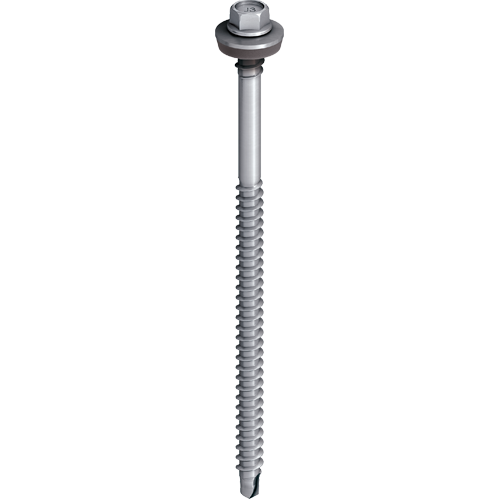

EJOT® self-drilling screw JT3-D-2H-6.5/7.0


Specification

  • Applications

    • Fastening sandwich panels to timber substructure

  • Properties

    • A2 stainless steel with hardened steel drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • With free spin zone under screw head
    • High thread

  • Technical specifications

    • Diameter: 6.5 mm
    • Drilling capacity tI + tII: 2.0 mm
    • Drive: Hexagon A/F8
    • Ø high thread: 7.0 mm
    • Installation rotation speed: max. 1500 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm High thread diameter mm Ø Sealing Washer mm Clamp thickness mm Fastener material Unit
    JT3-D-2H-6,5/7,0x100 E22 3558413351 6.5 7.0 22 16.0 - 50.0 Stainless Steel 100

    Specifications

    ø
    6.5
    High thread diameter mm
    7.0
    Ø Sealing Washer mm
    22
    Clamp thickness
    16.0 - 50.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-2H-6,5/7,0x100 E22
    Unit
    100
    JT3-D-2H-6,5/7,0x100 E19 3558466351 6.5 7.0 19 16.0 - 50.0 Stainless Steel 100

    Specifications

    ø
    6.5
    High thread diameter mm
    7.0
    Ø Sealing Washer mm
    19
    Clamp thickness
    16.0 - 50.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-2H-6,5/7,0x100 E19
    Unit
    100
    JT3-D-2H-6,5/7,0x100 7380666301 6.5 7.0 0 - none 16.0 - 50.0 Stainless Steel 200

    Specifications

    ø
    6.5
    High thread diameter mm
    7.0
    Ø Sealing Washer mm
    0 - none
    Clamp thickness
    16.0 - 50.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-2H-6,5/7,0x100
    Unit
    200
    JT3-D-2H-6,5/7,0x120 E16 3558511351 6.5 7.0 16 36.0 - 70.0 Stainless Steel 100

    Specifications

    ø
    6.5
    High thread diameter mm
    7.0
    Ø Sealing Washer mm
    16
    Clamp thickness
    36.0 - 70.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-2H-6,5/7,0x120 E16
    Unit
    100
    JT3-D-2H-6,5/7,0x120 E22 3558513351 6.5 7.0 22 36.0 - 70.0 Stainless Steel 100

    Specifications

    ø
    6.5
    High thread diameter mm
    7.0
    Ø Sealing Washer mm
    22
    Clamp thickness
    36.0 - 70.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-2H-6,5/7,0x120 E22
    Unit
    100
    JT3-D-2H-6,5/7,0x120 E19 3558566351 6.5 7.0 19 36.0 - 70.0 Stainless Steel 100

    Specifications

    ø
    6.5
    High thread diameter mm
    7.0
    Ø Sealing Washer mm
    19
    Clamp thickness
    36.0 - 70.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-2H-6,5/7,0x120 E19
    Unit
    100
    JT3-D-2H-6,5/7,0x120 7380667301 6.5 7.0 0 - none 36.0 - 70.0 Stainless Steel 200

    Specifications

    ø
    6.5
    High thread diameter mm
    7.0
    Ø Sealing Washer mm
    0 - none
    Clamp thickness
    36.0 - 70.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-2H-6,5/7,0x120
    Unit
    200
    JT3-D-2H-6,5/7,0x140 E16 3558611351 6.5 7.0 16 56.0 - 90.0 Stainless Steel 100

    Specifications

    ø
    6.5
    High thread diameter mm
    7.0
    Ø Sealing Washer mm
    16
    Clamp thickness
    56.0 - 90.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-2H-6,5/7,0x140 E16
    Unit
    100
    JT3-D-2H-6,5/7,0x140 E22 3558613351 6.5 7.0 22 56.0 - 90.0 Stainless Steel 100

    Specifications

    ø
    6.5
    High thread diameter mm
    7.0
    Ø Sealing Washer mm
    22
    Clamp thickness
    56.0 - 90.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-2H-6,5/7,0x140 E22
    Unit
    100
    JT3-D-2H-6,5/7,0x140 E19 3558666351 6.5 7.0 19 56.0 - 90.0 Stainless Steel 100

    Specifications

    ø
    6.5
    High thread diameter mm
    7.0
    Ø Sealing Washer mm
    19
    Clamp thickness
    56.0 - 90.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-D-2H-6,5/7,0x140 E19
    Unit
    100
