EJOT® Self-drilling screw JT3-D-12H-5.5/6.3

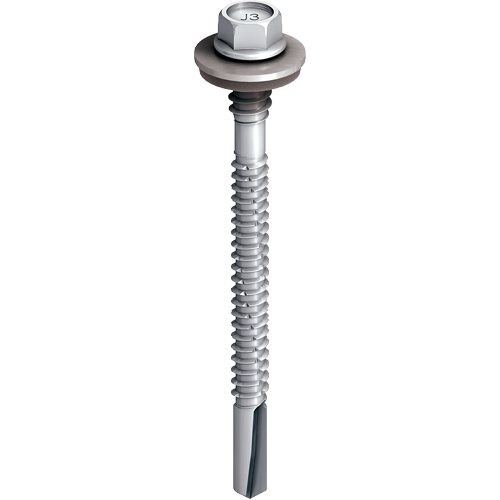

JT3-D-12H-5,56,3

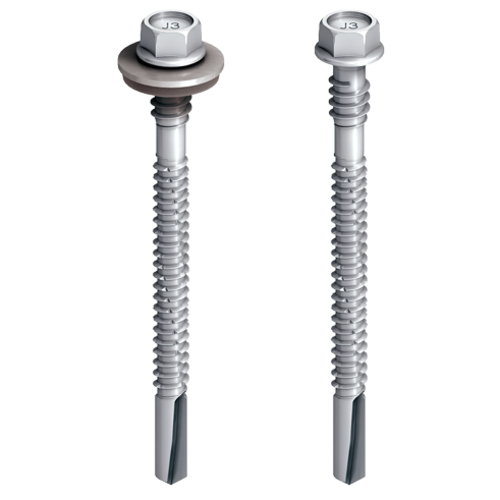

JT3-D-12H-5,56,3_nw_2016

Specification

  • Applications

    • Fastening sandwich panels to 3-12 mm steel substructure

  • Properties

    • A2 stainless steel with hardened steel drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • With free spin zone under the screw head
    • High thread

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 13 mm
    • Drive: Hexagon A/F8
    • Ø high thread: 6.3 mm
    • Installation rotation speed: max. 1300 rpm
Order information: Further lengths upon request.

Filter

Selected filters

    Orderidentifier Article Number ø mm High thread diameter mm Ø Sealing Washer mm Length mm Fastener material Unit
    JT3-D-12H-5,5/6,3x75 7380501309 5.5 6.3 0 - none 75.0 Stainless Steel 250

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    0 - none
    Length
    75.0
    Fastener material
    Stainless Steel
    Clamp thickness
    46.0 - 54.0
    Orderidentifier
    JT3-D-12H-5,5/6,3x75
    Unit
    250
    JT3-D-12H-5,5/6,3x95 7380455309 5.5 6.3 0 - none 95.0 Stainless Steel 250

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    0 - none
    Length
    95.0
    Fastener material
    Stainless Steel
    Clamp thickness
    58.0 - 72.0
    Orderidentifier
    JT3-D-12H-5,5/6,3x95
    Unit
    250
    JT3-D-12H-5,5/6,3x115 7380456309 5.5 6.3 0 - none 115.0 Stainless Steel 250

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    0 - none
    Length
    115.0
    Fastener material
    Stainless Steel
    Clamp thickness
    68.0 - 92.0
    Orderidentifier
    JT3-D-12H-5,5/6,3x115
    Unit
    250
    JT3-D-12H-5,5/6,3x135 7380432309 5.5 6.3 0 - none 135.0 Stainless Steel 250

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    0 - none
    Length
    135.0
    Fastener material
    Stainless Steel
    Clamp thickness
    82.0 - 112.0
    Orderidentifier
    JT3-D-12H-5,5/6,3x135
    Unit
    250
    JT3-D-12H-5,5/6,3x155 7380457309 5.5 6.3 0 - none 155.0 Stainless Steel 200

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    0 - none
    Length
    155.0
    Fastener material
    Stainless Steel
    Clamp thickness
    102.0 - 132.0
    Orderidentifier
    JT3-D-12H-5,5/6,3x155
    Unit
    200
    JT3-D-12H-5,5/6,3x175 7380518309 5.5 6.3 0 - none 175.0 Stainless Steel 200

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    0 - none
    Length
    175.0
    Fastener material
    Stainless Steel
    Clamp thickness
    120.0 - 152.0
    Orderidentifier
    JT3-D-12H-5,5/6,3x175
    Unit
    200
    JT3-D-12H-5,5/6,3x195 7380502309 5.5 6.3 0 - none 195.0 Stainless Steel 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    0 - none
    Length
    195.0
    Fastener material
    Stainless Steel
    Clamp thickness
    140.0 - 172.0
    Orderidentifier
    JT3-D-12H-5,5/6,3x195
    Unit
    100
    JT3-D-12H-5,5/6,3x245 7380569309 5.5 6.3 0 - none 245.0 Stainless Steel 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    0 - none
    Length
    245.0
    Fastener material
    Stainless Steel
    Clamp thickness
    170.0 - 222.0
    Orderidentifier
    JT3-D-12H-5,5/6,3x245
    Unit
    100
    JT3-D-12H-5,5/6,3x75 E16 3557511312 5.5 6.3 16 75.0 Stainless Steel 250

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    16
    Length
    75.0
    Fastener material
    Stainless Steel
    Clamp thickness
    41.0 - 48.0
    Orderidentifier
    JT3-D-12H-5,5/6,3x75 E16
    Unit
    250
    JT3-D-12H-5,5/6,3x95 E16 3554911311 5.5 6.3 16 95.0 Stainless Steel 100

    Specifications

    ø
    5.5
    High thread diameter mm
    6.3
    Ø Sealing Washer mm
    16
    Length
    95.0
    Fastener material
    Stainless Steel
    Clamp thickness
    51.0 - 68.0
    Orderidentifier
    JT3-D-12H-5,5/6,3x95 E16
    Unit
    100
