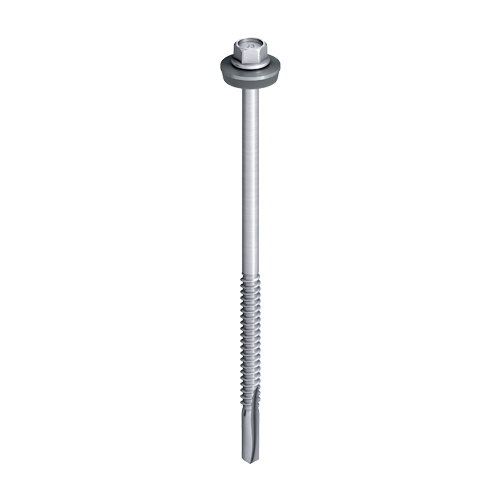

EJOT® self-drilling screw JT3-12-5.5

-JT3-12-5-5-JT3-12-5-5-Pos2-500x500px-500Wx500H

Specification

  • Applications

    • Fastening profiled steel and aluminium sheets and sandwich panels 4–10 mm steel substructure
    • Fastening profiled aluminium sheets to 4–12 mm aluminium substructure

  • Properties

    • A2 stainless steel with hardened drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer

  • Technical specifications

    • Diameter: 5.5 mm
    • Drilling capacity tI + tII: 1.0 + 12.0 mm / 2.0 + 10.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1300 rpm

Filter

Selected filters

    Orderidentifier Article Number ø mm Ø Sealing Washer mm Length mm Fastener material Clamp thickness mm Unit
    JT3-12-5.5x40-E16 PU100 6595611311 5.5 16 40.0 Stainless Steel 0.0 - 11.0 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    40.0
    Fastener material
    Stainless Steel
    Clamp thickness
    0.0 - 11.0
    Orderidentifier
    JT3-12-5.5x40-E16 PU100
    Unit
    100
    JT3-12-5.5x40-E22 3595613311 5.5 22 40.0 Stainless Steel 0.0 - 11.0 250

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    22
    Length
    40.0
    Fastener material
    Stainless Steel
    Clamp thickness
    0.0 - 11.0
    Orderidentifier
    JT3-12-5.5x40-E22
    Unit
    250
    JT3-12-5.5x58-E16 PU100 6595811311 5.5 16 58.0 Stainless Steel 0.0 - 31.0 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    58.0
    Fastener material
    Stainless Steel
    Clamp thickness
    0.0 - 31.0
    Orderidentifier
    JT3-12-5.5x58-E16 PU100
    Unit
    100
    JT3-12-5.5x78-E16 3595011311 5.5 16 78.0 Stainless Steel 25.0 - 51.0 250

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    78.0
    Fastener material
    Stainless Steel
    Clamp thickness
    25.0 - 51.0
    Orderidentifier
    JT3-12-5.5x78-E16
    Unit
    250
    JT3-12-5.5x78-E16 PU100 6595011311 5.5 16 78.0 Stainless Steel 25.0 - 51.0 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    78.0
    Fastener material
    Stainless Steel
    Clamp thickness
    25.0 - 51.0
    Orderidentifier
    JT3-12-5.5x78-E16 PU100
    Unit
    100
    JT3-12-5.5x78-E22 3595013311 5.5 22 78.0 Stainless Steel 25.0 - 51.0 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    22
    Length
    78.0
    Fastener material
    Stainless Steel
    Clamp thickness
    25.0 - 51.0
    Orderidentifier
    JT3-12-5.5x78-E22
    Unit
    100
    JT3-12-5.5x98-E16 3595111311 5.5 16 98.0 Stainless Steel 45.0 - 71.0 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    98.0
    Fastener material
    Stainless Steel
    Clamp thickness
    45.0 - 71.0
    Orderidentifier
    JT3-12-5.5x98-E16
    Unit
    100
    JT3-12-5.5x118-E16 3595211311 5.5 16 118.0 Stainless Steel 65.0 - 91.0 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    118.0
    Fastener material
    Stainless Steel
    Clamp thickness
    65.0 - 91.0
    Orderidentifier
    JT3-12-5.5x118-E16
    Unit
    100
    JT3-12-5.5x138-E16 3595311311 5.5 16 138.0 Stainless Steel 85.0 - 111.0 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    138.0
    Fastener material
    Stainless Steel
    Clamp thickness
    85.0 - 111.0
    Orderidentifier
    JT3-12-5.5x138-E16
    Unit
    100
    JT3-12-5.5x158-E16 3595411311 5.5 16 158.0 Stainless Steel 105.0 - 131.0 100

    Specifications

    ø
    5.5
    Ø Sealing Washer mm
    16
    Length
    158.0
    Fastener material
    Stainless Steel
    Clamp thickness
    105.0 - 131.0
    Orderidentifier
    JT3-12-5.5x158-E16
    Unit
    100
