EJOT® ORKAN storm washer corrugated alu

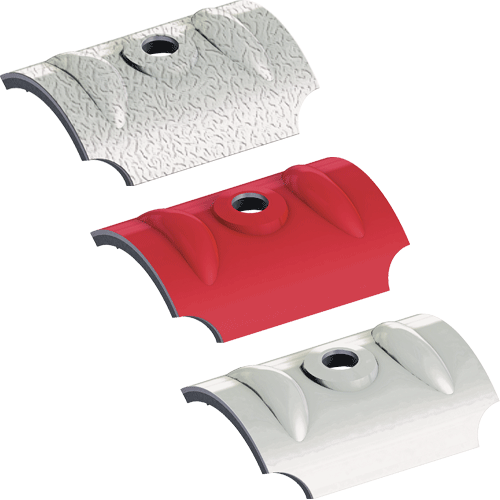

Orkan-Kalotte-500x500-Welle-5

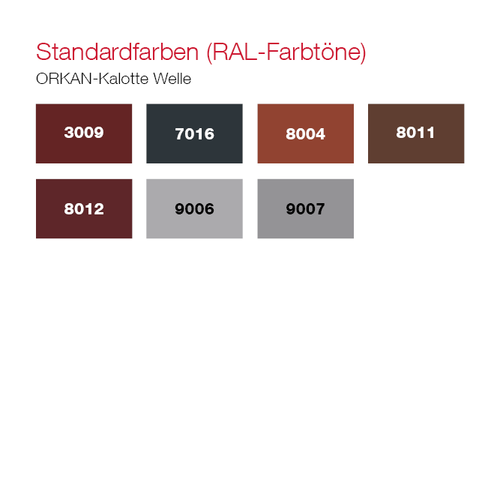

Sonderfarben-Kalotte-Welle

Specification

  • Applications

    • Crown fixing of corrugated profile sheet
    • Crown fixing of light diffusing panels

  • Properties

    • Optimised reinforcement beads
    • Secure waterproofing
    • Aluminium alloy mill finish, coloured (RAL)
    • Storm washers are to be stored in a dry place until installation

  • Benefits

    • Increased installation reliability
    • High dimensional stability
    • Optimum load transmission
    • Sophisticated fastening system in combination with self-drilling
      and self-tapping screws





    Note
    Only use screws with 16mm and 19 mm washer diameter. For determination of the clamp thickness please take the storm washer into account with 3 mm. The guidelines and installation instructions given by the profile and panel manufacturer are to be observed. Storm washers which are not mentioned are
    special storm washers. Please note surcharges.

Filter

Select system

  • Blank/Stucco
    Select unit
    • alu mill finish
  • RAL
    Select unit
    • RAL7016
    • RAL8004
    • RAL8011
    • RAL8012
    • RAL8014
    • RAL9006
    • RAL9007

Selected filters

    Orderidentifier Article Number Radius mm Head Colour Unit
    ORKAN-Kalotte W48 Alu-blank* 3047400110 48.0 500

    Specifications

    Radius
    48.0
    Head Colour
    alu mill finish
    Orderidentifier
    ORKAN-Kalotte W48 Alu-blank*
    Unit
    500
    ORKAN-Kalotte W48 Alu-RAL 7016* 3047425119 48.0 500

    Specifications

    Radius
    48.0
    Head Colour
    RAL7016
    Orderidentifier
    ORKAN-Kalotte W48 Alu-RAL 7016*
    Unit
    500
    ORKAN-Kalotte W48 Alu-RAL 9006* 3047484119 48.0 500

    Specifications

    Radius
    48.0
    Head Colour
    RAL9006
    Orderidentifier
    ORKAN-Kalotte W48 Alu-RAL 9006*
    Unit
    500
    Storm washer W24 mill finish 3047700110 24.0 500

    Specifications

    Radius
    24.0
    Head Colour
    alu mill finish
    Orderidentifier
    Storm washer W24 mill finish
    Unit
    500
    Storm washers W24 Alu- RAL 7016 3047725119 24.0 500

    Specifications

    Radius
    24.0
    Head Colour
    RAL7016
    Orderidentifier
    Storm washers W24 Alu- RAL 7016
    Unit
    500
    ORKAN-Kalotte W24 Alu-RAL 8012* 3047740119 24.0 500

    Specifications

    Radius
    24.0
    Head Colour
    RAL8012
    Orderidentifier
    ORKAN-Kalotte W24 Alu-RAL 8012*
    Unit
    500
    Storm washers W24 Alu- RAL 9006 3047784119 24.0 500

    Specifications

    Radius
    24.0
    Head Colour
    RAL9006
    Orderidentifier
    Storm washers W24 Alu- RAL 9006
    Unit
    500
    Storm washers W24 Alu- RAL 8014 3050024079 24.0 500

    Specifications

    Radius
    24.0
    Head Colour
    RAL8014
    Orderidentifier
    Storm washers W24 Alu- RAL 8014
    Unit
    500
    ORKAN-Kalotte W24 Alu-RAL 9007* 3050024220 24.0 500

    Specifications

    Radius
    24.0
    Head Colour
    RAL9007
    Orderidentifier
    ORKAN-Kalotte W24 Alu-RAL 9007*
    Unit
    500
    ORKAN-Kalotte W30 Alu-blank* 3050030000 30.0 500

    Specifications

    Radius
    30.0
    Head Colour
    alu mill finish
    Orderidentifier
    ORKAN-Kalotte W30 Alu-blank*
    Unit
    500
