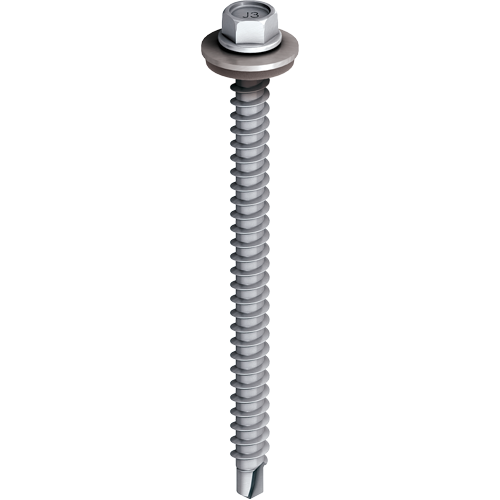

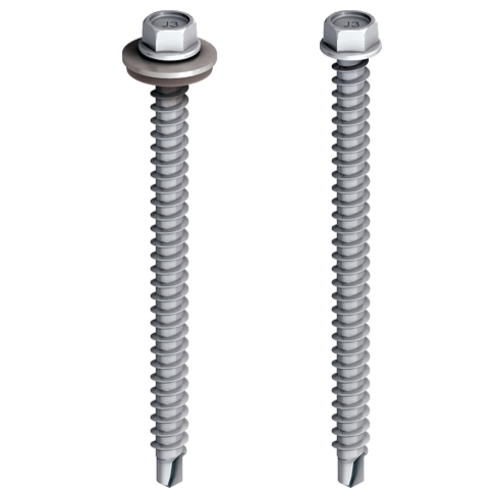

EJOT® self-drilling screw JT3-2-6.5

Specification

  • Applications

    • Fastening profiled steel and aluminium sheets, sandwich panels and roofing sheets to timber substructure
  • Properties

    • A2 stainless steel with hardened drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
  • Technical specifications

    • Diameter: 6.5 mm
    • Drilling capacity tI + tII: 2.0 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1500 rpm

Filter

Selected filters

    Orderidentifier Article Number Thread Diameter mm Ø Sealing Washer mm Length mm Fastener material Unit
    JT3-2-6.5x40-E16 3594011321 6.5 16 40.0 Stainless Steel 250

    Specifications

    Thread Diameter
    6.5
    Ø Sealing Washer mm
    16
    Length
    40.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-2-6.5x40-E16
    Unit
    250
    JT3-2-6.5x40-E16 PU100 6594011321 6.5 16 40.0 Stainless Steel 100

    Specifications

    Thread Diameter
    6.5
    Ø Sealing Washer mm
    16
    Length
    40.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-2-6.5x40-E16 PU100
    Unit
    100
    JT3-2-6.5x50-E16 3598811321 6.5 16 50.0 Stainless Steel 250

    Specifications

    Thread Diameter
    6.5
    Ø Sealing Washer mm
    16
    Length
    50.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-2-6.5x50-E16
    Unit
    250
    JT3-2-6.5x50-E16 PU100 6598811321 6.5 16 50.0 Stainless Steel 100

    Specifications

    Thread Diameter
    6.5
    Ø Sealing Washer mm
    16
    Length
    50.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-2-6.5x50-E16 PU100
    Unit
    100
    JT3-2-6.5x65-E16 3598911321 6.5 16 65.0 Stainless Steel 250

    Specifications

    Thread Diameter
    6.5
    Ø Sealing Washer mm
    16
    Length
    65.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-2-6.5x65-E16
    Unit
    250
    JT3-2-6.5x65-E16 PU100 6598911321 6.5 16 65.0 Stainless Steel 100

    Specifications

    Thread Diameter
    6.5
    Ø Sealing Washer mm
    16
    Length
    65.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-2-6.5x65-E16 PU100
    Unit
    100
    JT3-2-6.5x80-E16 3598011321 6.5 16 80.0 Stainless Steel 250

    Specifications

    Thread Diameter
    6.5
    Ø Sealing Washer mm
    16
    Length
    80.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-2-6.5x80-E16
    Unit
    250
    JT3-2-6.5x80-E16 PU100 6598011321 6.5 16 80.0 Stainless Steel 100

    Specifications

    Thread Diameter
    6.5
    Ø Sealing Washer mm
    16
    Length
    80.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-2-6.5x80-E16 PU100
    Unit
    100
    JT3-2-6.5x100-E16 3598111321 6.5 16 100.0 Stainless Steel 100

    Specifications

    Thread Diameter
    6.5
    Ø Sealing Washer mm
    16
    Length
    100.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-2-6.5x100-E16
    Unit
    100
    JT3-2-6.5x120-E16 3598311321 6.5 16 120.0 Stainless Steel 100

    Specifications

    Thread Diameter
    6.5
    Ø Sealing Washer mm
    16
    Length
    120.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JT3-2-6.5x120-E16
    Unit
    100
