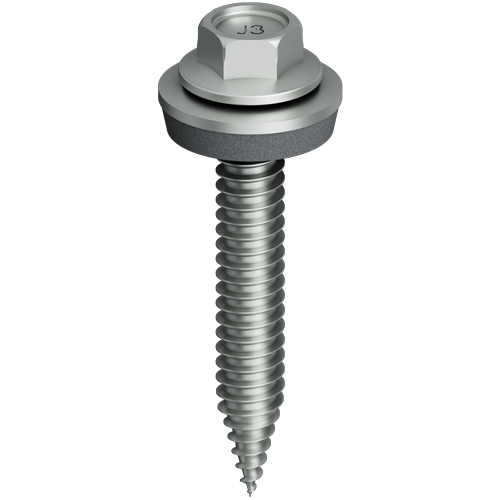

EJOFAST® self-drilling screw JF3-2-6.0

Specification

  • Applications

    Fastening components and brackets to thin-walled metal profiles for photovoltaic installations:

    • Fastening trapezoidal sheet flashings, clips for fixing standing seam systems or pre-punched retainers to thin-walled steel substructures (e.g. profiled sheets)
    • Fixing wind deflector sheets to profiled elements
  • Properties

    • A2 stainless steel with hardened steel drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • Non-skid application
    • Fastening with reduced swarf
    • Excellent gripping properties
  • Technical specifications

    • Diameter: 6.0 mm
    • Drilling capacity tI + tII: 0.88 + 0.88 mm
    • Drive: Hexagon A/F8
    • Installation rotation speed: max. 1800 rpm

Filter

Selected filters

    Orderidentifier Article Number Ø Sealing Washer mm Length mm Clamp thickness mm Unit
    JF3-2-6.0x25 E16 3595511391 16 25.0 0.0 - 7.0 500

    Specifications

    Ø Sealing Washer mm
    16
    Length
    25.0
    Clamp thickness
    0.0 - 7.0
    Orderidentifier
    JF3-2-6.0x25 E16
    Unit
    500
    JF3-2-6.0x40 E16 3595513931 16 40.0 0.0 - 22.0 500

    Specifications

    Ø Sealing Washer mm
    16
    Length
    40.0
    Clamp thickness
    0.0 - 22.0
    Orderidentifier
    JF3-2-6.0x40 E16
    Unit
    500
    JF3-2-6.0x50 E16 3595512931 16 50.0 0.0 - 32.0 500

    Specifications

    Ø Sealing Washer mm
    16
    Length
    50.0
    Clamp thickness
    0.0 - 32.0
    Orderidentifier
    JF3-2-6.0x50 E16
    Unit
    500
