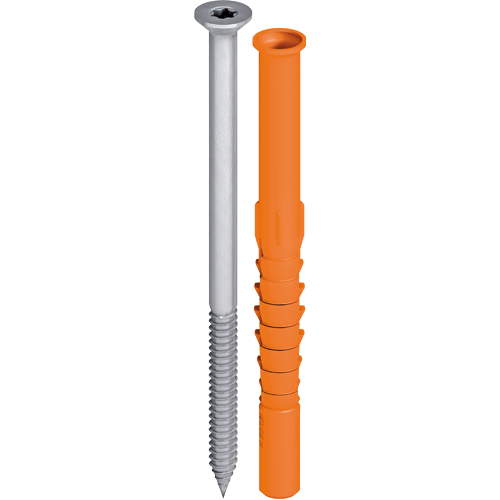

EJOT® facade anchor SDP-S-10G

Specification

  • Applications

    • For fixing wood components in aerated concrete

    Notice
    For planning and processing, please observe approval ETA-12/0502.

  • Properties

    • Countersunk head
    • Facade anchor with two-stage screw
    • Reliable form-fit in the substrate thanks to combined expansion zones
    • High load capacity
    • Available with steel screws or stainless steel screws
    • Product identification through different sleeve colours
  • Technical specifications

    Characteristic values

    • Diameter: 10 mm
    • Drive: Hexalobular drive T40
    • Drill hole depth ≥ t: 80 mm
    • Embedment depth ≥hv: 70 mm

    Permissible loads

    • Compressive strength aerated concrete [N/mm2]
      • Aerated concrete 2: 0.75 kN
      • Aerated concrete 3: 1.31 kN
      • Aerated concrete 4: 1.87 kN
      • Aerated concrete 6: 3.00 kN
    • Partial safety factor γMAAC: 2.00
    • Characteristic bending moment
      • Steel screw: 17.7 Nm / γMs 1.50
      • Stainless steel screw: 20.6 Nm / γMs 1.87

Filter

Selected filters

    Orderidentifier Article Number ø mm Material Anchor length mm Clamping thickness

    tfix≤ mm

    Unit
    SDP-S-10Gx80-V 8530080420 10.0 Carbon Steel 80.0 10.0 100

    Specifications

    ø
    10.0
    Material
    Carbon Steel
    Anchor length
    80.0
    Clamping thickness

    tfix

    10.0
    Orderidentifier
    SDP-S-10Gx80-V
    Unit
    100
    SDP-S-10Gx80-E 8530080620 10.0 Stainless Steel 80.0 10.0 100

    Specifications

    ø
    10.0
    Material
    Stainless Steel
    Anchor length
    80.0
    Clamping thickness

    tfix

    10.0
    Orderidentifier
    SDP-S-10Gx80-E
    Unit
    100
    SDP-S-10Gx100-V 8530100420 10.0 Carbon Steel 100.0 30.0 50

    Specifications

    ø
    10.0
    Material
    Carbon Steel
    Anchor length
    100.0
    Clamping thickness

    tfix

    30.0
    Orderidentifier
    SDP-S-10Gx100-V
    Unit
    50
    SDP-S-10Gx100-E 8530100620 10.0 Stainless Steel 100.0 30.0 50

    Specifications

    ø
    10.0
    Material
    Stainless Steel
    Anchor length
    100.0
    Clamping thickness

    tfix

    30.0
    Orderidentifier
    SDP-S-10Gx100-E
    Unit
    50
    SDP-S-10Gx120-V 8530120420 10.0 Carbon Steel 120.0 50.0 50

    Specifications

    ø
    10.0
    Material
    Carbon Steel
    Anchor length
    120.0
    Clamping thickness

    tfix

    50.0
    Orderidentifier
    SDP-S-10Gx120-V
    Unit
    50
    SDP-S-10Gx120-E 8530120620 10.0 Stainless Steel 120.0 50.0 50

    Specifications

    ø
    10.0
    Material
    Stainless Steel
    Anchor length
    120.0
    Clamping thickness

    tfix

    50.0
    Orderidentifier
    SDP-S-10Gx120-E
    Unit
    50
    SDP-S-10Gx140-V 8530140420 10.0 Carbon Steel 140.0 70.0 50

    Specifications

    ø
    10.0
    Material
    Carbon Steel
    Anchor length
    140.0
    Clamping thickness

    tfix

    70.0
    Orderidentifier
    SDP-S-10Gx140-V
    Unit
    50
    SDP-S-10Gx140-E 8530140620 10.0 Stainless Steel 140.0 70.0 50

    Specifications

    ø
    10.0
    Material
    Stainless Steel
    Anchor length
    140.0
    Clamping thickness

    tfix

    70.0
    Orderidentifier
    SDP-S-10Gx140-E
    Unit
    50
    SDP-S-10Gx160-V 8530160420 10.0 Carbon Steel 160.0 90.0 50

    Specifications

    ø
    10.0
    Material
    Carbon Steel
    Anchor length
    160.0
    Clamping thickness

    tfix

    90.0
    Orderidentifier
    SDP-S-10Gx160-V
    Unit
    50
    SDP-S-10Gx160-E 8530160620 10.0 Stainless Steel 160.0 90.0 50

    Specifications

    ø
    10.0
    Material
    Stainless Steel
    Anchor length
    160.0
    Clamping thickness

    tfix

    90.0
    Orderidentifier
    SDP-S-10Gx160-E
    Unit
    50
