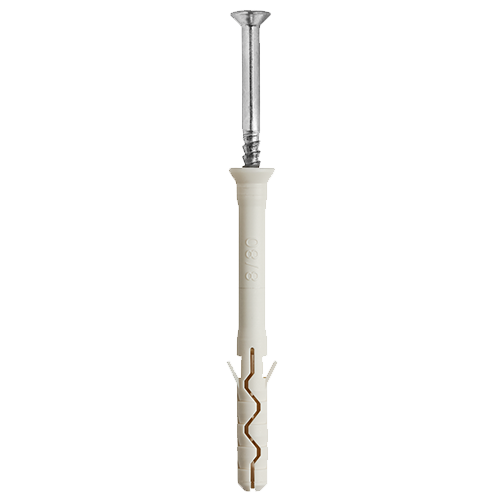

Nail anchor ND-S

Specification

  • Applications

    Speed plug for light-duty fixings:

    • Substructures
    • Cabinets, Skirting boards, lath
    • Cable ducts, cable clamps
    • Pipe supports


    Base materials
    Suitable for

    • Concrete
    • Solid clay brick
    • Vertically perforated brick



  • Properties

    • Ready-to-install nylon countersunk plug with nail made of zinc-plated steel (GVZ)
    • Drive-in installation
    • Nail screw head with Pozidriv recess for the removal or adjustment of the anchor
    • GVZ for dry indoor areas



  • Technical specifications

    Drive: Z2 cross recess

Filter

Selected filters

    Orderidentifier Article Number ø mm Material Anchor length mm Unit
    ND-S-5x30 9650075658 5.0 Carbon Steel 30.0 200

    Specifications

    ø
    5.0
    Material
    Carbon Steel
    Anchor length
    30.0
    Orderidentifier
    ND-S-5x30
    Unit
    200
    ND-S-6x40 V 9650075660 6.0 Carbon Steel 40.0 200

    Specifications

    ø
    6.0
    Material
    Carbon Steel
    Anchor length
    40.0
    Orderidentifier
    ND-S-6x40 V
    Unit
    200
    ND-S-5x50 9650075659 5.0 Carbon Steel 50.0 200

    Specifications

    ø
    5.0
    Material
    Carbon Steel
    Anchor length
    50.0
    Orderidentifier
    ND-S-5x50
    Unit
    200
    ND-S-6x60 V 9650075661 6.0 Carbon Steel 60.0 200

    Specifications

    ø
    6.0
    Material
    Carbon Steel
    Anchor length
    60.0
    Orderidentifier
    ND-S-6x60 V
    Unit
    200
    ND-S-8x60 V 9650075665 8.0 Carbon Steel 60.0 100

    Specifications

    ø
    8.0
    Material
    Carbon Steel
    Anchor length
    60.0
    Orderidentifier
    ND-S-8x60 V
    Unit
    100
    ND-S-6x80 V 9650075662 6.0 Carbon Steel 80.0 100

    Specifications

    ø
    6.0
    Material
    Carbon Steel
    Anchor length
    80.0
    Orderidentifier
    ND-S-6x80 V
    Unit
    100
    ND-S-8x80 V 9650075663 8.0 Carbon Steel 80.0 100

    Specifications

    ø
    8.0
    Material
    Carbon Steel
    Anchor length
    80.0
    Orderidentifier
    ND-S-8x80 V
    Unit
    100
    ND-S-8x100 9650075664 8.0 Carbon Steel 100.0 100

    Specifications

    ø
    8.0
    Material
    Carbon Steel
    Anchor length
    100.0
    Orderidentifier
    ND-S-8x100
    Unit
    100
    ND-S-8x120 V 9650075610 8.0 Carbon Steel 120.0 100

    Specifications

    ø
    8.0
    Material
    Carbon Steel
    Anchor length
    120.0
    Orderidentifier
    ND-S-8x120 V
    Unit
    100
    ND-S 8/140 V 9650075611 8.0 Carbon Steel 120.0 100

    Specifications

    ø
    8.0
    Material
    Carbon Steel
    Anchor length
    120.0
    Orderidentifier
    ND-S 8/140 V
    Unit
    100
