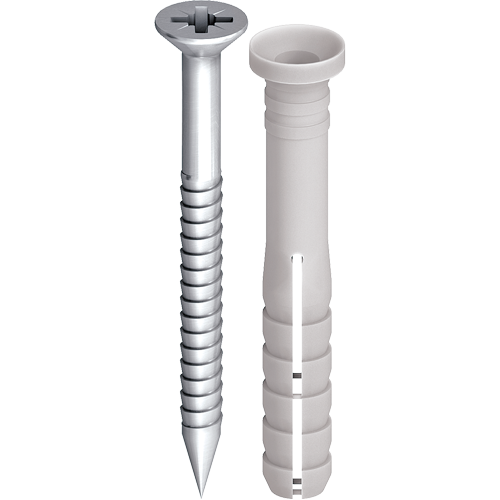

ND-K-6

Specification

  • Applications

    • For easy and quick installation
    • For light and constructional fastening
  • Properties

    • Zinc-plated steel
    • with pre-assembled special nail
    • with hexagon head
    • for all pressure-resistant building materials
    • easy to remove
  • Technical specifications

    Recommended work loads

    • Drill hole depth ≥ t: 40 mm
    • Embedment depth hv: 30 mm
    • concrete: 0.3 kN
    • solid brick: 0.25 kN
    • perforated brick: 0.25 kN

Filter

Selected filters

    Orderidentifier Article Number Thread Diameter mm Material Length mm Anchor length mm Unit
    ND-K-6x40-V 9650075679 6.0 Carbon Steel 40.0 40.0 200

    Specifications

    Thread Diameter
    6.0
    Material
    Carbon Steel
    Length
    40.0
    Anchor length
    40.0
    Orderidentifier
    ND-K-6x40-V
    Unit
    200
    ND-K-6x60-V 9650075682 6.0 Carbon Steel 60.0 60.0 200

    Specifications

    Thread Diameter
    6.0
    Material
    Carbon Steel
    Length
    60.0
    Anchor length
    60.0
    Orderidentifier
    ND-K-6x60-V
    Unit
    200
    ND-K-6x80-V 9650075683 6.0 Carbon Steel 80.0 80.0 100

    Specifications

    Thread Diameter
    6.0
    Material
    Carbon Steel
    Length
    80.0
    Anchor length
    80.0
    Orderidentifier
    ND-K-6x80-V
    Unit
    100
