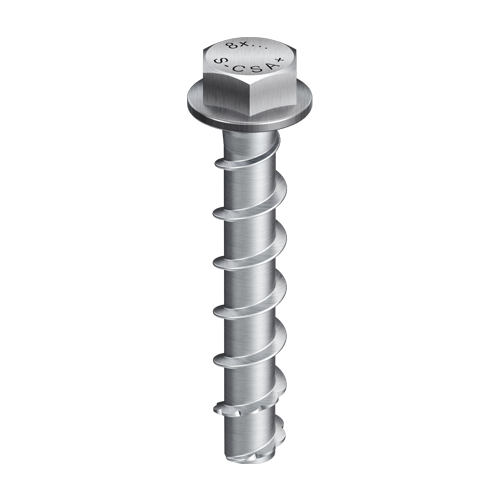

EJOT® Concrete screw JC2-KB Plus 8

Specification

  • Applications

    • Facade scaffolds
    • Temporary fastening
    • Contact surfaces
    • Shelves
    • Cable racks
    • Hand rails
    • Battens
    • Formworks

    Base materials

    Approved for

    • Cracked concrete
    • Non-cracked concrete

    Also suitable for

    • Solid clay brick
    • Solid sand-lime brick



  • Properties

    • Galvanized zinc-plated steel
    • Hexagon head with flange
    • ETA-approved concrete screw for cracked and
    • non-cracked concrete
    • Self-tapping approved screw anchor for
    • push-trough installation
    • No expansion therefore small edge and centre distances
    • possible
    • For dry indoor use
    • Completely removable
    • Two embedment depths

Filter

Selected filters

    Orderidentifier Article Number Embedment depth hef≥ mm Length mm Drill hole depth mm Pilot Hole Ø mm Unit
    JC2-KB PLUS 8x55/5 SW13 9650071700 50.0 55.0 60.0 8.0 50

    Specifications

    Embedment depth hef
    50.0
    Length
    55.0
    Drill hole depth
    60.0
    Pilot Hole Ø
    8.0
    Orderidentifier
    JC2-KB PLUS 8x55/5 SW13
    Unit
    50
    JC2-KB PLUS 8x70/5/20 SW13 9650071709 50.0 70.0 60.0 8.0 50

    Specifications

    Embedment depth hef
    50.0
    Length
    70.0
    Drill hole depth
    60.0
    Pilot Hole Ø
    8.0
    Orderidentifier
    JC2-KB PLUS 8x70/5/20 SW13
    Unit
    50
    JC2-KB PLUS 8x80/15/30 SW13 9650071715 50.0 80.0 60.0 8.0 50

    Specifications

    Embedment depth hef
    50.0
    Length
    80.0
    Drill hole depth
    60.0
    Pilot Hole Ø
    8.0
    Orderidentifier
    JC2-KB PLUS 8x80/15/30 SW13
    Unit
    50
    JC2-KB PLUS 8x90/25/40 SW13 9650071721 50.0 90.0 60.0 8.0 50

    Specifications

    Embedment depth hef
    50.0
    Length
    90.0
    Drill hole depth
    60.0
    Pilot Hole Ø
    8.0
    Orderidentifier
    JC2-KB PLUS 8x90/25/40 SW13
    Unit
    50
    JC2-KB PLUS 8x100/35/50 SW13 9650071724 50.0 100.0 60.0 8.0 50

    Specifications

    Embedment depth hef
    50.0
    Length
    100.0
    Drill hole depth
    60.0
    Pilot Hole Ø
    8.0
    Orderidentifier
    JC2-KB PLUS 8x100/35/50 SW13
    Unit
    50
    JC2-KB PLUS 8x120/55/70 SW13 9650071730 50.0 120.0 60.0 8.0 25

    Specifications

    Embedment depth hef
    50.0
    Length
    120.0
    Drill hole depth
    60.0
    Pilot Hole Ø
    8.0
    Orderidentifier
    JC2-KB PLUS 8x120/55/70 SW13
    Unit
    25
    JC2-KB PLUS 8x140/75/90 SW13 9650071736 50.0 140.0 60.0 8.0 25

    Specifications

    Embedment depth hef
    50.0
    Length
    140.0
    Drill hole depth
    60.0
    Pilot Hole Ø
    8.0
    Orderidentifier
    JC2-KB PLUS 8x140/75/90 SW13
    Unit
    25
