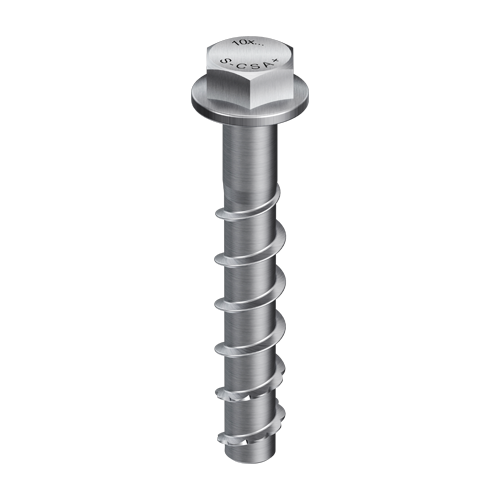

EJOT® Concrete screw JC2-KB Plus 10

Specification

  • Applications

    • Facade scaffolds
    • Temporary fastening
    • Contact surfaces
    • Shelves
    • Cable racks
    • Hand rails
    • Battens
    • Formworks

    Base materials

    Approved for

    • Cracked concrete
    • Non-cracked concrete

    Also suitable for

    • Solid clay brick
    • Solid sand-lime brick
  • Properties

    • Galvanized zinc-plated steel
    • Hexagon head with flange
    • ETA-approved concrete screw for cracked and
    • non-cracked concrete
    • Self-tapping approved screw anchor for
    • push-trough installation
    • No expansion therefore small edge and centre distances
    • possible
    • For dry indoor use
    • Completely removable
    • Two embedment depths

Filter

Selected filters

    Orderidentifier Article Number Embedment depth hef≥ mm Length mm Drill hole depth mm Pilot Hole Ø mm Unit
    JC2-KB PLUS 10x60/5 SW15 9650071744 55.0 60.0 65.0 10.0 25

    Specifications

    Embedment depth hef
    55.0
    Length
    60.0
    Drill hole depth
    65.0
    Pilot Hole Ø
    10.0
    Orderidentifier
    JC2-KB PLUS 10x60/5 SW15
    Unit
    25
    JC2-KB PLUS 10x70/15 SW15 9650071750 55.0 70.0 65.0 10.0 25

    Specifications

    Embedment depth hef
    55.0
    Length
    70.0
    Drill hole depth
    65.0
    Pilot Hole Ø
    10.0
    Orderidentifier
    JC2-KB PLUS 10x70/15 SW15
    Unit
    25
    JC2-KB PLUS 10x80/25 SW15 9650071756 55.0 80.0 65.0 10.0 25

    Specifications

    Embedment depth hef
    55.0
    Length
    80.0
    Drill hole depth
    65.0
    Pilot Hole Ø
    10.0
    Orderidentifier
    JC2-KB PLUS 10x80/25 SW15
    Unit
    25
    JC2-KB PLUS 10x90/5/35 SW15 9650071762 55.0 90.0 65.0 10.0 25

    Specifications

    Embedment depth hef
    55.0
    Length
    90.0
    Drill hole depth
    65.0
    Pilot Hole Ø
    10.0
    Orderidentifier
    JC2-KB PLUS 10x90/5/35 SW15
    Unit
    25
    JC2-KB PLUS 10x100/15/45 SW15 9650071765 55.0 100.0 65.0 10.0 25

    Specifications

    Embedment depth hef
    55.0
    Length
    100.0
    Drill hole depth
    65.0
    Pilot Hole Ø
    10.0
    Orderidentifier
    JC2-KB PLUS 10x100/15/45 SW15
    Unit
    25
    JC2-KB PLUS 10x120/35/65 SW15 9650071771 55.0 120.0 65.0 10.0 25

    Specifications

    Embedment depth hef
    55.0
    Length
    120.0
    Drill hole depth
    65.0
    Pilot Hole Ø
    10.0
    Orderidentifier
    JC2-KB PLUS 10x120/35/65 SW15
    Unit
    25
    JC2-KB PLUS 10x140/55/85 SW15 9650071777 55.0 140.0 65.0 10.0 25

    Specifications

    Embedment depth hef
    55.0
    Length
    140.0
    Drill hole depth
    65.0
    Pilot Hole Ø
    10.0
    Orderidentifier
    JC2-KB PLUS 10x140/55/85 SW15
    Unit
    25
    JC2-KB PLUS 10x160/75/105 SW15 9650071783 55.0 160.0 65.0 10.0 25

    Specifications

    Embedment depth hef
    55.0
    Length
    160.0
    Drill hole depth
    65.0
    Pilot Hole Ø
    10.0
    Orderidentifier
    JC2-KB PLUS 10x160/75/105 SW15
    Unit
    25
