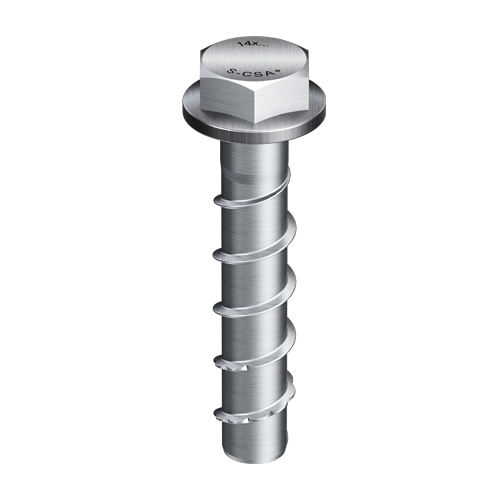

EJOT® Concrete screw JC2-KB Plus 14

Specification

  • Applications

    • Facade scaffolds
    • Temporary fastening
    • Contact surfaces
    • Shelves
    • Cable racks
    • Hand rails
    • Battens
    • Formworks

    Base materials

    Approved for

    • Cracked concrete
    • Non-cracked concrete

    Also suitable for

    • Solid clay brick
    • Solid sand-lime brick
  • Properties

    • Galvanized zinc-plated steel
    • Hexagon head with flange
    • ETA-approved concrete screw for cracked and
    • non-cracked concrete
    • Self-tapping approved screw anchor for
    • push-trough installation
    • No expansion therefore small edge and centre distances
    • possible
    • For dry indoor use
    • Completely removable
    • Reusable
    • Two embedment depths

Filter

Selected filters

    Orderidentifier Article Number Embedment depth hef≥ mm Length mm Drill hole depth mm Pilot Hole Ø mm Unit
    JC2-KB PLUS 14x75/10 SW21 9650071785 65.0 75.0 75.0 14.0 20

    Specifications

    Embedment depth hef
    65.0
    Length
    75.0
    Drill hole depth
    75.0
    Pilot Hole Ø
    14.0
    Orderidentifier
    JC2-KB PLUS 14x75/10 SW21
    Unit
    20
    JC2-KB PLUS 14x100/35 SW21 9650071811 65.0 100.0 75.0 14.0 10

    Specifications

    Embedment depth hef
    65.0
    Length
    100.0
    Drill hole depth
    75.0
    Pilot Hole Ø
    14.0
    Orderidentifier
    JC2-KB PLUS 14x100/35 SW21
    Unit
    10
    JC2-KB PLUS 14x130/15/65 SW21 9650071826 65.0 130.0 75.0 14.0 10

    Specifications

    Embedment depth hef
    65.0
    Length
    130.0
    Drill hole depth
    75.0
    Pilot Hole Ø
    14.0
    Orderidentifier
    JC2-KB PLUS 14x130/15/65 SW21
    Unit
    10
    JC2-KB PLUS 14x150/35/85 SW21 9650071839 65.0 150.0 75.0 14.0 10

    Specifications

    Embedment depth hef
    65.0
    Length
    150.0
    Drill hole depth
    75.0
    Pilot Hole Ø
    14.0
    Orderidentifier
    JC2-KB PLUS 14x150/35/85 SW21
    Unit
    10
