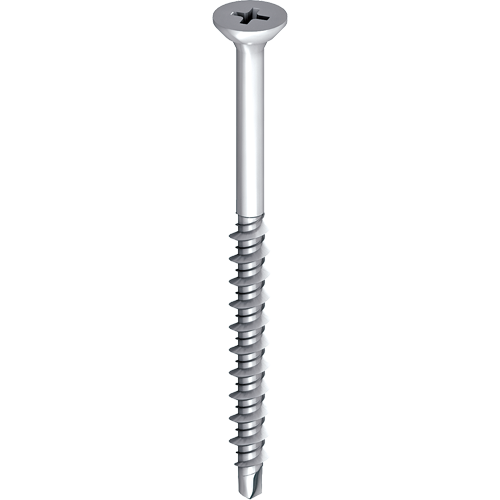

EJOT® Self-drilling screw RS-HT

Renovierungsschraube Typ RS
Anwendung-Renovierungsschraube_RS-HT

Specification

  • Applications

    • Especially suited for fixing PVC windows to old wood frames

  • Properties

    • fast and efficient window exchange
    • the interior surface (render, wallpaper ...) stays undamaged
    • the screw can be fastened directly into the wood, no pre-drilling required

  • Technical specifications

    • Head diameter: 9.5 mm
    • Drive: Phillips PH 2
    • Thread type: HT-thread
Choose a product variant

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Material Unit
    Self-drilling screw RS-HT 5.3x35 7284055601 5.3 35.0 Zinc plated, blue passivated 100

    Specifications

    ø
    5.3
    Length
    35.0
    Material
    Zinc plated, blue passivated
    Drive
    Phillips PH 2
    Orderidentifier
    Self-drilling screw RS-HT 5.3x35
    Unit
    100
    Self-drilling screw RS-HT 5.3x55/40 7284057601 5.3 40.0 Zinc plated, blue passivated 100

    Specifications

    ø
    5.3
    Length
    40.0
    Material
    Zinc plated, blue passivated
    Drive
    Phillips PH 2
    Orderidentifier
    Self-drilling screw RS-HT 5.3x55/40
    Unit
    100
    Self-drilling screw RS-HT 5.3x65/40 7284058601 5.3 40.0 Zinc plated, blue passivated 100

    Specifications

    ø
    5.3
    Length
    40.0
    Material
    Zinc plated, blue passivated
    Drive
    Phillips PH 2
    Orderidentifier
    Self-drilling screw RS-HT 5.3x65/40
    Unit
    100
    Self-drilling screw RS-HT 5.3x80/40 7284059601 5.3 40.0 Zinc plated, blue passivated 100

    Specifications

    ø
    5.3
    Length
    40.0
    Material
    Zinc plated, blue passivated
    Drive
    Phillips PH 2
    Orderidentifier
    Self-drilling screw RS-HT 5.3x80/40
    Unit
    100
    Self-drilling screw RS-HT 5.3x95/40 7284060601 5.3 40.0 Zinc plated, blue passivated 100

    Specifications

    ø
    5.3
    Length
    40.0
    Material
    Zinc plated, blue passivated
    Drive
    Phillips PH 2
    Orderidentifier
    Self-drilling screw RS-HT 5.3x95/40
    Unit
    100
    Renovation screw RS-HT 5.3x45/40 7284121601 5.3 45.0 Zinc plated 100

    Specifications

    ø
    5.3
    Length
    45.0
    Material
    Zinc plated
    Drive
    Phillips PH 2
    Orderidentifier
    Renovation screw RS-HT 5.3x45/40
    Unit
    100
