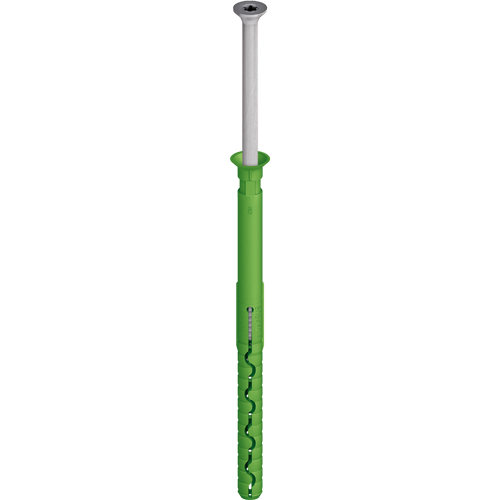

SDF-S plus 8UB

Specification

  • Applications

    Brick slip system anchor for concrete and masonry

    • For concrete, solid and perforated masonry
    • Anchor tube with small countersunk head for unobtrusive installation in the joint
  • Properties

    • Approved for concrete, solid and perforated masonry (A, B, C, D)
    • Anchor tube with small countersunk head for unobtrusive installation in the joint
    • Torsion-proof anchor tube
    • Universal expansion zone for safe anchoring
    • High loads
    • Anchor with increased bending moment
    • Premounted screw for quick installation
    • German DIBt approval: Z-21.2-589
    • Technical specifications

      • Anchor diameter: 8 mm
      • Diameter of countersunk head: 12 mm
      • Drill hole depth h1 ≥: 80 mm
      • Embedment depth hef ≥:  70 mm
      • Screw drive: TORX T30
      • German DIBt approval: Z-21.2-589

      Characteristic loads:


      Building material class A:

      • Normal weight concrete ≥ C 12/15 acc. to EN 206-1: 1.0 kN
      • Pre-cast concrete Panel ≥ B15: 0.25 kN

      Building material class B:

      • Clay bricks(≥ Mz 12) acc. to DIN 105: 0.4 kN
      • Solid lime sandstone (≥ KS 12) acc. to DIN EN 106: 0.4 kN
      • Solid masonry of lightweight concrete (V) acc. to DIN 18152: 0.2 kN

      Building material class C:

      • Vertically perforated clay bricks (Hlz) acc. to DIN 105: *
      • Vertical coring reference brick (Hlz) acc. to ÖNORM B 6124: 0.75 kN
      • Sand-lime perforated bricks (≥ KSL 6) acc. to DIN EN 106: 0.25 kN
      • Lightweight concrete hollow blocks (≥ HbL 2) acc. to DIN 18151: 0.15 kN

      Building material class D:

      • Lightweight aggregate concrete acc. to TGL: 0.3 kN

      *According to approval to be determined throught pull-out testing at the building.

      The design loads given are in accordance with the German building code. National safety factors are already incorporated. Please observe the approval.



Find the right anchor lengths: ETICS anchor configurator
ETICS products are only available from system suppliers

Filter

Selected filters

    Orderidentifier Article Number Anchor diameter mm Length mm Embedment mm Screw-in-/hammer-inanchor Material Unit
    EJOT SDF-S plus 8UB x 100 8786100460 8.0 100.0 70.0 screw-in-anchor Zinc plated 100

    Specifications

    Anchor diameter
    8.0
    Length
    100.0
    Embedment
    70.0
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Material
    Zinc plated
    Orderidentifier
    EJOT SDF-S plus 8UB x 100
    Unit
    100
    EJOT SDF-S plus 8UB x 120 8786120460 8.0 120.0 70.0 screw-in-anchor Zinc plated 100

    Specifications

    Anchor diameter
    8.0
    Length
    120.0
    Embedment
    70.0
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Material
    Zinc plated
    Orderidentifier
    EJOT SDF-S plus 8UB x 120
    Unit
    100
    EJOT SDF-S plus 8UB x 140 8786140460 8.0 140.0 70.0 screw-in-anchor Zinc plated 100

    Specifications

    Anchor diameter
    8.0
    Length
    140.0
    Embedment
    70.0
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Material
    Zinc plated
    Orderidentifier
    EJOT SDF-S plus 8UB x 140
    Unit
    100
    EJOT SDF-S plus 8UB x 160 8786160460 8.0 160.0 70.0 screw-in-anchor Zinc plated 100

    Specifications

    Anchor diameter
    8.0
    Length
    160.0
    Embedment
    70.0
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Material
    Zinc plated
    Orderidentifier
    EJOT SDF-S plus 8UB x 160
    Unit
    100
    EJOT SDF-S plus 8UB x 180 8786180460 8.0 180.0 70.0 screw-in-anchor Zinc plated 100

    Specifications

    Anchor diameter
    8.0
    Length
    180.0
    Embedment
    70.0
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Material
    Zinc plated
    Orderidentifier
    EJOT SDF-S plus 8UB x 180
    Unit
    100
    EJOT SDF-S plus 8UB x 200 8786200460 8.0 200.0 70.0 screw-in-anchor Zinc plated 100

    Specifications

    Anchor diameter
    8.0
    Length
    200.0
    Embedment
    70.0
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Material
    Zinc plated
    Orderidentifier
    EJOT SDF-S plus 8UB x 200
    Unit
    100
    EJOT SDF-S plus 8UB x 220 8786220460 8.0 220.0 70.0 screw-in-anchor Zinc plated 100

    Specifications

    Anchor diameter
    8.0
    Length
    220.0
    Embedment
    70.0
    Screw-in-/hammer-inanchor
    screw-in-anchor
    Material
    Zinc plated
    Orderidentifier
    EJOT SDF-S plus 8UB x 220
    Unit
    100
