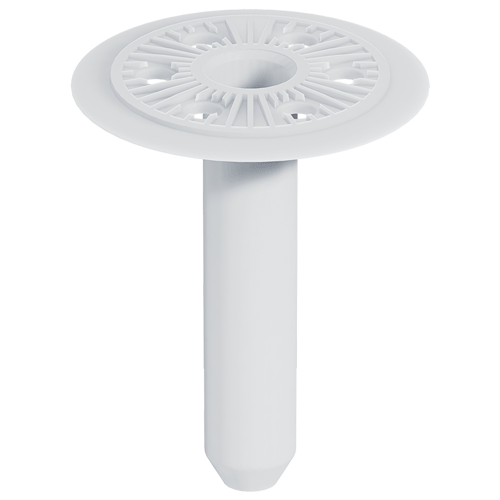

EJOT® TE 60/50

Specification

  • Applications

    • Fastening of External Thermal Insulation Systems on problematic substrates

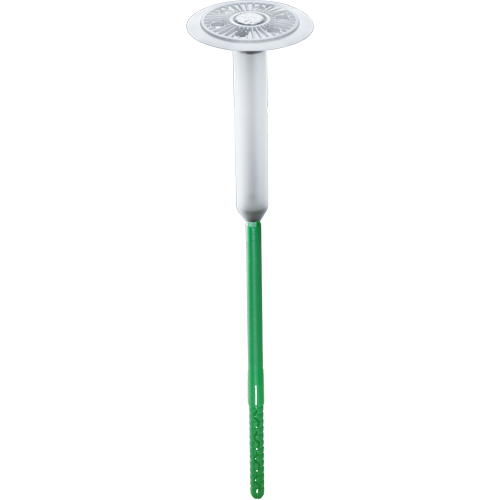

    • To combine with EJOT SDF-S plus 8UB
  • Properties

    • Point thermal transmittance λ 0.002 W/K
    • European Technical Approval: ETA-04/0064
  • Technical specifications

    Technical data EJOT TE 60/50 and 60/110 in combinaton with EJOT SDF-S plus 8UB

    Shaft length EJOT TE 60/50: 50 mm
    Shaft length EJOT TE 60/110: 110 mm
    Washer diameter: 60 mm
    Screw drive: TX30
    Drill hole depth h1 ≥ : 80 mm
    Embedment depth hef ≥ : 70 mm
    Point thermal transmission χ TE 60/50: 0.002 W/K
    Point thermal transmission χ TE 60/110 with insulation thickness 120-150 mm: 0.000 W/K
    Point thermal transmission χ TE 60/110 with insulation thickness 150-240: 0.001 W/K
    European Technical Approval ETA-04/0064

ETICS products are only available from system suppliers

Orderidentifier Article Number Washer diameter mm Length mm Embedment depth hef Drill hole depth Unit
Tube-washer-TE-60-50 8533050000 60.0 50.0 70.0 80.0 100

Specifications

Washer diameter
60.0
Length
50.0
Embedment depth hef
70.0
Drill hole depth
80.0
Orderidentifier
Tube-washer-TE-60-50
Unit
100
