SHEETtracs®

Specification

  • Overview

    • Design recommendations
    • High strength of the screw joint due to the formed draught
    • High vibration resistance
    • Simple and safe assembly due to good alignment and low installation torque
    • High stripping torque due to a robust female thread
    • Circular thread cross section for maximised thread engagement
    • Metric compatibility

Hotline

Applications Engineer

CAD & more - Your Online-Service

* To have access to our CAD data, tools and other services, please register here.

SHEETtracs® CAD data *

Here you can directly download CAD data, PDF and DXF drawings.



*

Our Application Check allows you to make a general statement about the feasibility of your individual joining task.



Login to your My EJOT / CAD & more account.

  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

CAD & more - Your Online Service Area

Unfortunately you currently have no authorization to use "CAD & more".

Unfortunately, this data can not be provided to you without the consent of the confidentiality agreement.
Your request will be manually verified, this can take 1 to 3 business days.

  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Grant Access to CAD Data

Unfortunately you currently have no authorization to use "CAD & more".

Apply for access to CAD data.

CAD & More

"CAD & More" provides you with confidential information about our products DELTA PT®, ALtracs® Plus, SHEETtracs® (CAD files, product files, drawings etc.). This data can only be accessed by customers of the EJOT Industrial Division and will not be made


  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Thank you!

Your request will be manually verified, this may take 1 to 3 business days.
You will receive an e-mail as soon as your access for "CAD & more" has been activated.
Thank you for your patience.



  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Confirm CAD data renewal

In the e-mail sent by us you will find the link to verify your account, please click on it.
If you do not receive an e-mail within a few minutes, please check your spam folder.



  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Can not be renewed

Please contact our customer care



  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Can not process your request for CAD

Please contact our customer care



  • For technical questions please contact our Hotline Team +49 2751 529-123
    Problems with your access? Mail to: service-industrie@ejot.com

Reliable thin sheet metal joints

The reliable assembly of thin sheets with pilot holes has always presented a problem for removable joints. For sheets thicker than 1 mm it used to be possible to apply common sheet metal screws but an increasing reduction of sheet thickness, due to the cost saving potentials, prevents this today. EJOT now developed a secure solution for the process reliable assembly of pre-punched sheet metal joints with less 1,5 mm thickness, the self-tapping EJOT SHEETtracs® screw. This fastening element also supports the implementation of individual light weight desing strategies. For a example a reduction of the sheet thickness of casing walls of "white goods" became possible with the SHEETtracs® - an important factor for the weight and also cost optimisation of this product category.

Special thread layout

The EJOT SHEETtracs® features a 45° (30° / 15°) asymmetric flank angle and with less material displacement it creates a stronger female thread in the sheet. This increases the stripping torque level of the joint and enables multiple repeat assemblies. In the lower, tapered area of the screw, the flank angle is reversed, and the resulting through draught is formed mainly into fastening direction. The non-circular thread forming zone ensures easy, centred application and the raised thread areas ensure a secure penetration of the sheet material. The circular cross section in the upper, load bearing thread results in higher thread engagement in the sheet metal compared to non-circular thread geometries.

SHEETtracs® Application Check

The EJOT SHEETtracs® is a self-tapping screw for reliable thin sheet metal joints with pilot hole.


The online tool SHEETtracs® Application Check enables the user to determine the relevant values for the fastening application by entering the materials and sheet thicknesses which are to be joined. These values are amongst others the required pre-hole diameter and a recommended tightening torque considering different screw surfaces.

SHEETtracs® WN 52 WN54 Head Styles and Drives

WN5241 round washer head with Z cross recess (or H)
WN5242 pan head with cross recess Z (or H)
WN5243 flat countersunk head with cross recess Z (or H)
WN5247 hexagon flange head

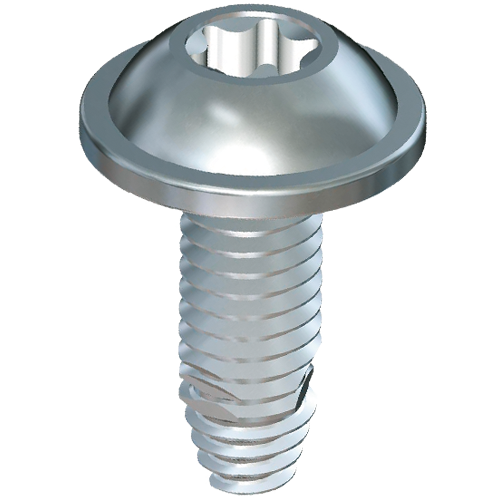

WN5251 round washer head with TORX®

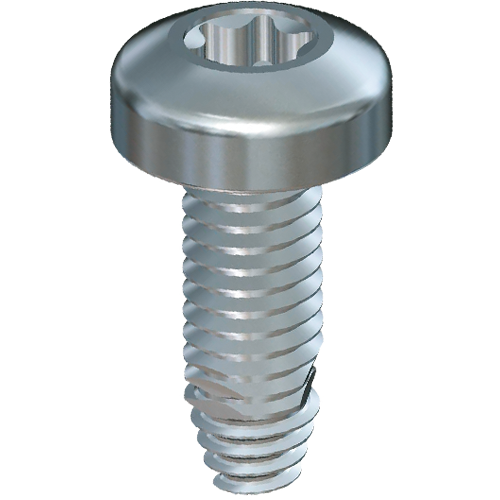

WN5252 pan head with TORX®
WN5254 flat countersunk head with TORX®

For detailed information, please refer to the EJOT company standard.
