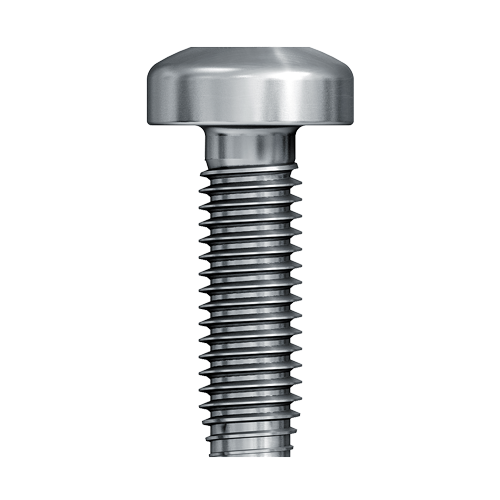

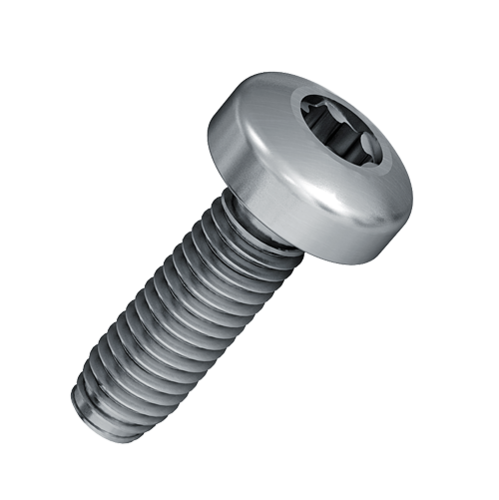

ALtracs® Plus

Specification

  • Overview

    • Design recommendations
    • The self-tapping screw for light metal
    • Lightweight construction suitability: The optimised thread geometry of the ALtracs® Plus facilitates the use of smaller and shorter screws, but with consistently high strength values
    • The ALtra CALC® prognosis programme for pre-dimensioning of joints saves time and effort for individual component testing.
    • High clamp loads and long term stability, even under high dynamic and thermal stress
    • Up to 40% costs saving through omission of work steps for screw and component
    • Easy design engineering with the EJOT® ALtra CALC prognosis programme
    • High vibration resistance without additional safety elements
    • High assembly safety due to low installation and failure torque
    • In case of repairs a metric screw can be used

Hotline

Applications Engineer

CAD & more - Your Online-Service

* To have access to our CAD data, tools and other services, please register here.

ALtracs® Plus CAD data *


Here you can directly download CAD data, PDF and DXF drawings.



ALtra CALC® Prognosis Program *

Use our prognosis program for the calculation and dimensioning of your fastening connection. This software combines the guidelines of VDI 2230 with extensive experience of EJOT in direct fastening.
