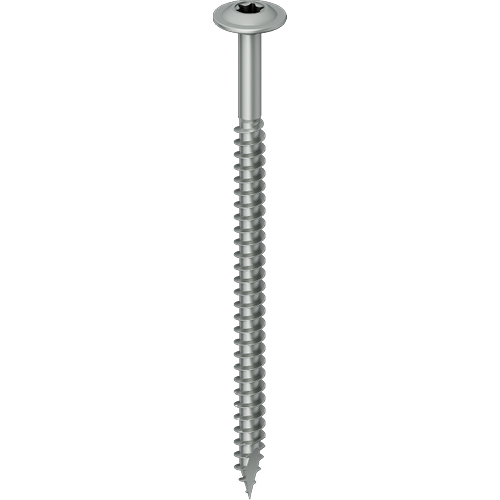

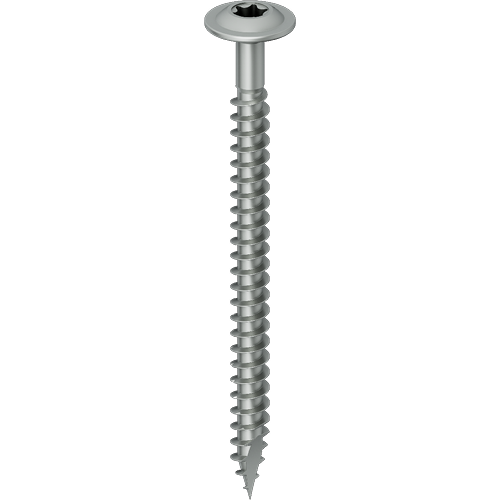

F-FAST® plus wood screw JW4 wafer head
Filter
Selected filters
| Orderidentifier | Article Number | ø mm | Length mm | threaded length mm | Head length mm | Drive | Unit |
|---|---|---|---|---|---|---|---|
| JW4-2-Plus-STS-6,0X40/35 S TX30 | 3820000483 | 6.0 | 40.0 | 35.0 | 14.0 | Torx T30 | |
Specifications
|
|||||||
| JW4-2-Plus-STS-6,0X60/52 S TX30 | 3820000484 | 6.0 | 60.0 | 52.0 | 14.0 | Torx T30 | |
Specifications
|
|||||||
| JW4-2-Plus-STS-6,0X80/70 S TX30 | 3820000485 | 6.0 | 80.0 | 70.0 | 14.0 | Torx T30 | |
Specifications
|
|||||||
| JW4-2-Plus-STS-6,0X100/80 S TX30 | 3820000486 | 6.0 | 100.0 | 80.0 | 14.0 | Torx T30 | |
Specifications
|
|||||||
| JW4-2-Plus-STS-8,0X60/50 M TX40 | 3820000487 | 8.0 | 60.0 | 50.0 | 21.0 | Torx T40 | |
Specifications
|
|||||||
| JW4-2-Plus-STS-8,0X80/70 M TX40 | 3820000440 | 8.0 | 80.0 | 70.0 | 21.0 | Torx T40 | |
Specifications
|
|||||||
| JW4-2-Plus-STS-8,0X100/80 M TX40 | 3820000446 | 8.0 | 100.0 | 80.0 | 21.0 | Torx T40 | |
Specifications
|
|||||||
| JW4-2-Plus-STS-8,0X120/80 M TX40 | 3820000455 | 8.0 | 120.0 | 80.0 | 21.0 | Torx T40 | |
Specifications
|
