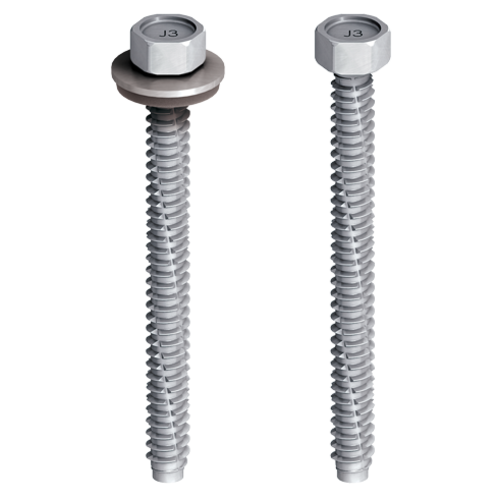

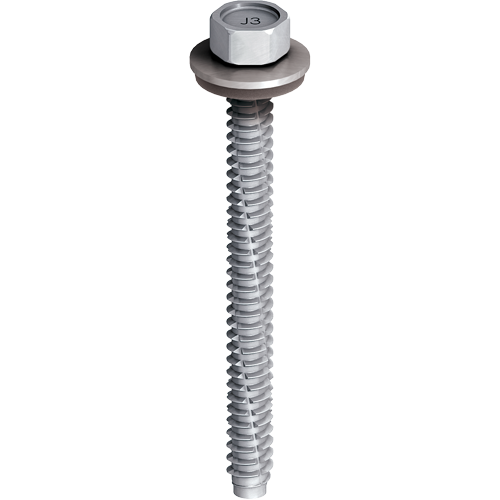

EJOT® self-tapping screw JZ3-6.3

Specification

  • Applications

    • Fastening profiled steel sheets and sandwich panels to steel substructure
    • Fastening profiled steel and aluminium sheets to aluminium substructures
  • Properties

    • A2 stainless steel
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
  • Technical specifications

    • Diameter: 6.3 mm
    • Drive: Hexagon AF 3/8"
    • Installation rotation speed: max. 400 rpm

Filter

Selected filters

    Orderidentifier Article Number Thread Diameter mm Ø Sealing Washer mm Length mm Unit
    JZ3-6.3x19-E16 3111111311 6.3 16 19.0 500

    Specifications

    Thread Diameter
    6.3
    Ø Sealing Washer mm
    16
    Length
    19.0
    Clamp thickness
    0.0 - 12.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JZ3-6.3x19-E16
    Unit
    500
    JZ3-6.3x25-E16 3111211311 6.3 16 25.0 500

    Specifications

    Thread Diameter
    6.3
    Ø Sealing Washer mm
    16
    Length
    25.0
    Clamp thickness
    0.0 - 18.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JZ3-6.3x25-E16
    Unit
    500
    JZ3-6.3x32-E16 3111311311 6.3 16 32.0 500

    Specifications

    Thread Diameter
    6.3
    Ø Sealing Washer mm
    16
    Length
    32.0
    Clamp thickness
    0.0 - 25.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JZ3-6.3x32-E16
    Unit
    500
    JZ3-6.3x38-E16 3111411311 6.3 16 38.0 500

    Specifications

    Thread Diameter
    6.3
    Ø Sealing Washer mm
    16
    Length
    38.0
    Clamp thickness
    0.0 - 31.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JZ3-6.3x38-E16
    Unit
    500
    JZ3-6.3x50-E16 3111611311 6.3 16 50.0 250

    Specifications

    Thread Diameter
    6.3
    Ø Sealing Washer mm
    16
    Length
    50.0
    Clamp thickness
    0.0 - 43.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JZ3-6.3x50-E16
    Unit
    250
    JZ3-6.3x64-E16 3111811311 6.3 16 64.0 250

    Specifications

    Thread Diameter
    6.3
    Ø Sealing Washer mm
    16
    Length
    64.0
    Clamp thickness
    0.0 - 57.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JZ3-6.3x64-E16
    Unit
    250
    JZ3-6.3x80-E16 3112011311 6.3 16 80.0 250

    Specifications

    Thread Diameter
    6.3
    Ø Sealing Washer mm
    16
    Length
    80.0
    Clamp thickness
    13.0 - 73.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JZ3-6.3x80-E16
    Unit
    250
    JZ3-6.3x90-E16 3112111311 6.3 16 90.0 100

    Specifications

    Thread Diameter
    6.3
    Ø Sealing Washer mm
    16
    Length
    90.0
    Clamp thickness
    23.0 - 83.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JZ3-6.3x90-E16
    Unit
    100
    JZ3-6.3x100-E16 3112211311 6.3 16 100.0 100

    Specifications

    Thread Diameter
    6.3
    Ø Sealing Washer mm
    16
    Length
    100.0
    Clamp thickness
    33.0 - 93.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JZ3-6.3x100-E16
    Unit
    100
    JZ3-6.3x115-E16 3112311311 6.3 16 115.0 100

    Specifications

    Thread Diameter
    6.3
    Ø Sealing Washer mm
    16
    Length
    115.0
    Clamp thickness
    48.0 - 108.0
    Fastener material
    Stainless Steel
    Orderidentifier
    JZ3-6.3x115-E16
    Unit
    100
