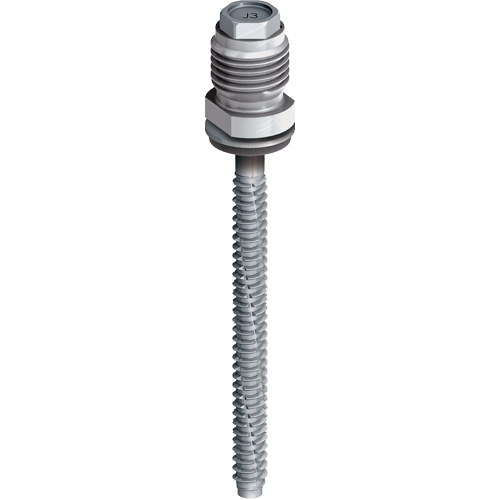

EJOT® scaffolding anchor JZ3-GU-6.3

Specification

  • Applications

    • For installation into steel ≥2 mm
    • For installation into aluminium ≥3 mm
  • Properties

    • A2 stainless steel
    • Consisting of GU threaded sleeve and JZ3 self-tapping screw
  • Technical specifications

    • Diameter: 6.3 mm
    • Drive: Hexagon AF 3/8″
    • Sealing washer: E16
    • High thread: M14x1.5

Filter

Selected filters

    Orderidentifier Article Number Thread Diameter mm Effective length scaffolding anchor mm Length of self-tapping screw mm Material Unit
    JZ3-GU-6,3x15-E16/2 9401111311 6.3 15.0 38.0 Stainless Steel 50

    Specifications

    Thread Diameter
    6.3
    Effective length scaffolding anchor
    15.0
    Length of self-tapping screw
    38.0
    Material
    Stainless Steel
    Orderidentifier
    JZ3-GU-6,3x15-E16/2
    Unit
    50
    JZ3-GU-6,3x30-E16/2 9401211311 6.3 30.0 50.0 Stainless Steel 50

    Specifications

    Thread Diameter
    6.3
    Effective length scaffolding anchor
    30.0
    Length of self-tapping screw
    50.0
    Material
    Stainless Steel
    Orderidentifier
    JZ3-GU-6,3x30-E16/2
    Unit
    50
    JZ3-GU-6,3x45-E16/2 9401511311 6.3 45.0 64.0 Stainless Steel 50

    Specifications

    Thread Diameter
    6.3
    Effective length scaffolding anchor
    45.0
    Length of self-tapping screw
    64.0
    Material
    Stainless Steel
    Orderidentifier
    JZ3-GU-6,3x45-E16/2
    Unit
    50
    JZ3-GU-6,3x70-E16/2 9401911311 6.3 70.0 90.0 Stainless Steel 50

    Specifications

    Thread Diameter
    6.3
    Effective length scaffolding anchor
    70.0
    Length of self-tapping screw
    90.0
    Material
    Stainless Steel
    Orderidentifier
    JZ3-GU-6,3x70-E16/2
    Unit
    50
    JZ3-GU-6,3x80-E16/2 9402011311 6.3 80.0 100.0 Stainless Steel 50

    Specifications

    Thread Diameter
    6.3
    Effective length scaffolding anchor
    80.0
    Length of self-tapping screw
    100.0
    Material
    Stainless Steel
    Orderidentifier
    JZ3-GU-6,3x80-E16/2
    Unit
    50
    JZ3-GU-6,3x95-E16/2 9402111311 6.3 95.0 115.0 Stainless Steel 50

    Specifications

    Thread Diameter
    6.3
    Effective length scaffolding anchor
    95.0
    Length of self-tapping screw
    115.0
    Material
    Stainless Steel
    Orderidentifier
    JZ3-GU-6,3x95-E16/2
    Unit
    50
    JZ3-GU-6,3x105-E16/2 9402211311 6.3 105.0 125.0 Stainless Steel 50

    Specifications

    Thread Diameter
    6.3
    Effective length scaffolding anchor
    105.0
    Length of self-tapping screw
    125.0
    Material
    Stainless Steel
    Orderidentifier
    JZ3-GU-6,3x105-E16/2
    Unit
    50
    JZ3-GU-6,3x130-E16/2 9402411311 6.3 130.0 150.0 Stainless Steel 50

    Specifications

    Thread Diameter
    6.3
    Effective length scaffolding anchor
    130.0
    Length of self-tapping screw
    150.0
    Material
    Stainless Steel
    Orderidentifier
    JZ3-GU-6,3x130-E16/2
    Unit
    50
    JZ3-GU-6,3x155-E16/2 9402611311 6.3 155.0 175.0 Stainless Steel 50

    Specifications

    Thread Diameter
    6.3
    Effective length scaffolding anchor
    155.0
    Length of self-tapping screw
    175.0
    Material
    Stainless Steel
    Orderidentifier
    JZ3-GU-6,3x155-E16/2
    Unit
    50
    JZ3-GU-6,3x180-E16/2 9402811314 6.3 180.0 200.0 Stainless Steel 50

    Specifications

    Thread Diameter
    6.3
    Effective length scaffolding anchor
    180.0
    Length of self-tapping screw
    200.0
    Material
    Stainless Steel
    Orderidentifier
    JZ3-GU-6,3x180-E16/2
    Unit
    50
