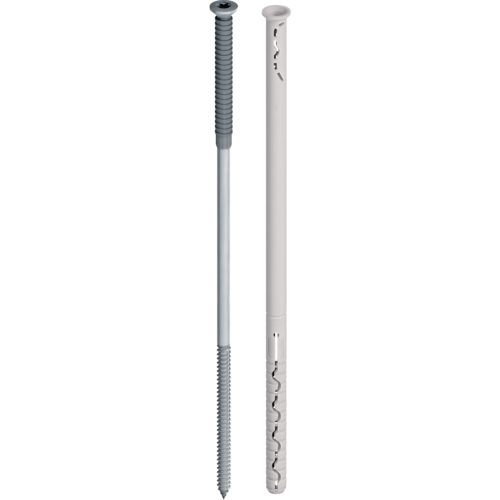

VSD 2G 8U-E

Applications

• For subsequent securing of outer sheets to buildings
• New: for subsequent securing of face bricks and vertically perforated clinkers
• Cost-effective restoring of the structural integrity

Properties

• Additional length 145 mm for subsequent securing of face bricks
• Optimised expansion zone – now also for post-securing of vertically perforated clinkers
• Universal expansion zone – secure installation in all substrates (A-C)
• Double expansion wall anchor: simultaneous embedment in both the supporting wall and the outer sheet
• The use of A4 stainless steel screws guarantees corrosion protection
• With general building authorities approval
• Clean and fast installation
• Can be installed at 0°C

Note
The VSD cavity wall repair anchor enables the subsequent renovation of double-sheet masonry. Advanced corrosion or a complete lack of wire anchors can lead to decreased stability of the curtain wall and possibly cause considerable physical injury. In particular curtain walls made before 1979 should be subject to further inspection. When renovating the outer facade, the stability of the curtain wall must be verified. The EJOT® VSD is a particularly cost-effective solution for subsequent installation between load-bearing shell and curtain wall.

Technical specifications

• Diameter: 8.0 mm
• Drive: Hexalobular drive T30
• Drill hole depth h₁:  ≥  80 mm
• Embedment depth h_nom:  ≥  70 mm

• Diameter: 8 mm
• Antrieb: Innensechsrund TX30
• Bohrlochtiefe h1: ≥ 80 mm
• Bohrlochtiefe hef: ≥ 70 mm

Base materials
Suitable for load-bearing inner sheets made of

• Concrete
• Solid brick
• Perforated brick

and outer sheet of

• Solid clinker
• Vertically perforated clinker
• Face brick
