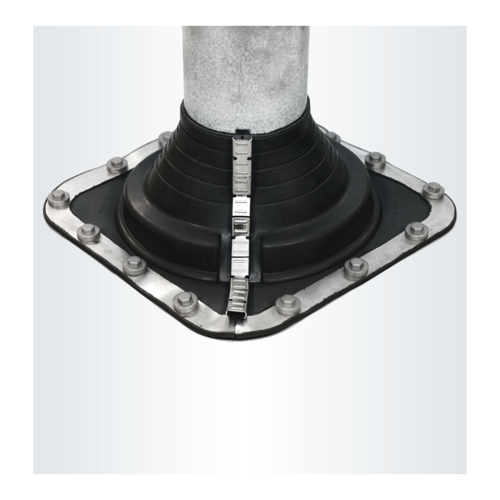

DEKTITE® Combo Set

Specification

  • Applications

    • For waterproofing pipes on corrugated metal or fibre cement roofs
    • For subsequent waterproofing of pipes

    Notice

    Use bulbtite rivets for corrugated fibre-cement sheets. For retrofitting see processing guidelines for Dektite® Retrofit. Profile height max. 45 mm.

  • Benefits

    • Perfect seal on roof and facade
    • No interference of thermal elongation of pipes
    • No fatigue fractures
    • Ideal for repairs of existing pipe systems
  • Included in delivery

    • 1 pipe flashing
    • 1 cartridge of EJOPLAST joint sealant
    • 1 EJOT® self-drilling screw set / optional EJOT® Bulbtite rivet set
    • 1 clips set
Orderidentifier Article Number For pipe Ø mm For pipe Ø mm Combo Base mm Roof pitch ° Combo Cartridge capacity ml ml Unit
DC110 8270004704 350.0 - 760.0 400-500
500-550
600-660
730-750
1000 x 1040 up to 45
up to 30
up to 15
up to 6
310.0 1

Specifications

For pipe Ø mm
350.0 - 760.0
For pipe Ø mm Combo
400-500</br>500-550</br>600-660</br>730-750
Base mm
1000 x 1040
Roof pitch ° Combo
up to 45</br>up to 30</br>up to 15</br>up to 6
Cartridge capacity ml
310.0
Number of screws
70/10
Contents Screws / Brackets Pieces
70/10
Orderidentifier
DC110
Unit
1
