Dektite® EZi-Seal

Specification

  • Applications

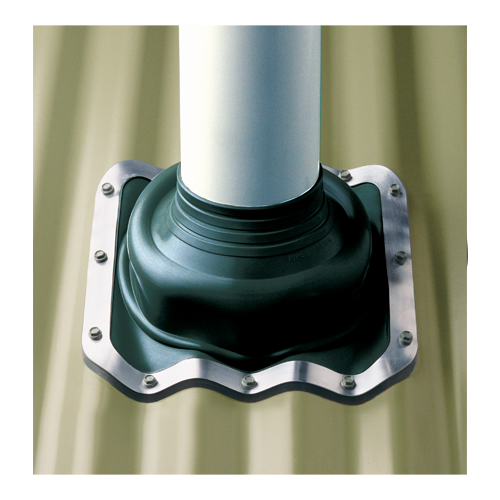

    • For waterproofing pipes on corrugated metal and fibre cement roofs

    Notice

    Use bulbtite rivets for corrugated fibre-cement sheets. Profile height max. 45 mm.

  • Benefits

    • Non-absorbent, closed cell sealing surface
    • Seals under compression even on wet surfaces
    • Seals without use of a joint sealant through existing seal strip
    • No interference of thermal elongation of pipes
    • No fatigue fractures
  • Inlcuded in delivery

    • 1 Pipe flashing
    • 1 EJOT® self-drilling screw set – optional EJOT® Bulbtite rivet set

Filter

Selected filters

    Orderidentifier Article Number For pipe Ø mm Base mm Roof pitch ° Number of screws Unit
    DFE 100 EZ 8200004706 0.0 - 0.35 100 x 100 0.0 - 60.0 8.0 1

    Specifications

    For pipe Ø mm
    0.0 - 0.35
    Base mm
    100 x 100
    Roof pitch
    0.0 - 60.0
    Number of screws
    8.0
    Orderidentifier
    DFE 100 EZ
    Unit
    1
    DFE 101 EZ 8200104706 5.0 - 55.0 139 x 139 0.0 - 35.0 8.0 1

    Specifications

    For pipe Ø mm
    5.0 - 55.0
    Base mm
    139 x 139
    Roof pitch
    0.0 - 35.0
    Number of screws
    8.0
    Orderidentifier
    DFE 101 EZ
    Unit
    1
    DFE 103 EZ 8200304706 5.0 - 127.0 221 x 221 0.0 - 35.0 16.0 1

    Specifications

    For pipe Ø mm
    5.0 - 127.0
    Base mm
    221 x 221
    Roof pitch
    0.0 - 35.0
    Number of screws
    16.0
    Orderidentifier
    DFE 103 EZ
    Unit
    1
    DFE 104 EZ 8200404706 75.0 - 175.0 280 x 280 0.0 - 35.0 20.0 1

    Specifications

    For pipe Ø mm
    75.0 - 175.0
    Base mm
    280 x 280
    Roof pitch
    0.0 - 35.0
    Number of screws
    20.0
    Orderidentifier
    DFE 104 EZ
    Unit
    1
    DFE 106 EZ 8200604706 125.0 - 230.0 363 x 363 0.0 - 35.0 28.0 1

    Specifications

    For pipe Ø mm
    125.0 - 230.0
    Base mm
    363 x 363
    Roof pitch
    0.0 - 35.0
    Number of screws
    28.0
    Orderidentifier
    DFE 106 EZ
    Unit
    1
    DFE 107 EZ 8200704706 150.0 - 300.0 456 x 456 0.0 - 35.0 32.0 1

    Specifications

    For pipe Ø mm
    150.0 - 300.0
    Base mm
    456 x 456
    Roof pitch
    0.0 - 35.0
    Number of screws
    32.0
    Orderidentifier
    DFE 107 EZ
    Unit
    1
    DFE 109 EZ 8200904706 230.0 - 508.0 681 x 681 0.0 - 35.0 40.0 1

    Specifications

    For pipe Ø mm
    230.0 - 508.0
    Base mm
    681 x 681
    Roof pitch
    0.0 - 35.0
    Number of screws
    40.0
    Orderidentifier
    DFE 109 EZ
    Unit
    1
