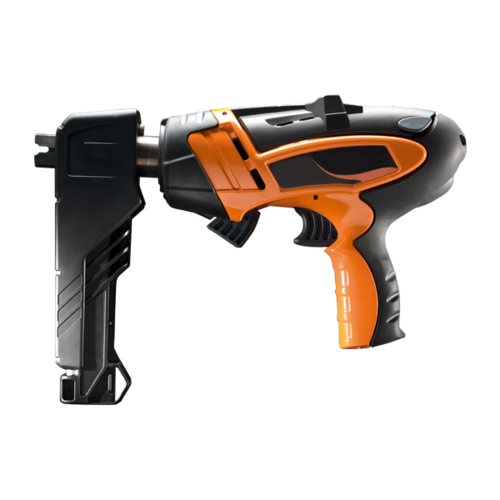

Shot firing tool P 560

Specification

  • Applications

    • Fastening profiled steel sheet to steel substrate ≥ 6 mm
    • For fastening cassettes to steel columns ≥ 6 mm

    Advantages

    • Fast installation sequence through automated repetition
    • Compact and lightweight design
    • Quick release fastening system
    • Easy cleaning
    • Stability system for secure storage
  • Properties

    • Automatic bolt, cartridge and piston feed
    • With drive pin magazine
  • Technical specifications

    • Weight incl. magazine: 4.23 kg
    • Setting energy: 520 J
    • Magazine: 10 drive pins / 10 cartridges
    • Cartridges: 6.3/16 (black, red, blue)
    • Dimensions H x L x W: 277 x 363 x 77 mm

    Included in delivery:

    1 shot firing tool
    1 oil spray 35 ml
    1 protective goggles
    1 cleaning set
    1 operating manual
    1 transport box

Filter

Selected filters

    Orderidentifier Article Number Weight kg Unit
    Shot firing tool P 560 9600013891 4.23 1

    Specifications

    Weight
    4.23
    Orderidentifier
    Shot firing tool P 560
    Unit
    1
    Compressed ring 9600014136 1

    Specifications

    Weight
    Orderidentifier
    Compressed ring
    Unit
    1
    Thrust piston 9600014137 1

    Specifications

    Weight
    Orderidentifier
    Thrust piston
    Unit
    1
    Barrel 9600014139 1

    Specifications

    Weight
    Orderidentifier
    Barrel
    Unit
    1
    Cleaning set 9600074000 1

    Specifications

    Weight
    Orderidentifier
    Cleaning set
    Unit
    1
    Spray oil can 35 ml 9600310080 1

    Specifications

    Weight
    Orderidentifier
    Spray oil can 35 ml
    Unit
    1
