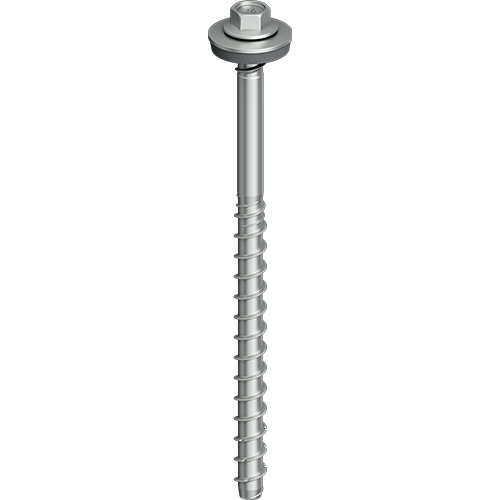

Concrete Screw JC6-D-7,5

Specification

  • Applications

    • Direct fastening of sandwich panels to concrete substructures
  • Properties

    • A4 stainless steel with hardened forming zone
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • Unique high thread geometry

    Advantages

    • Immediately resilient
    • Completely removable
    • No insertion rail necessary

    Base materials
    Suitable for

    • Cracked concrete
    • Non-cracked concrete
  • Technical specifications

    Drive: external hexagon SW8
    Diameter: 7,5
    Diameter high thread: 8,0
    Drill hole depth h1: ≥ 75,0
    Nominal embedmentdepth hnom mm: ≥ 65,0

Filter

Selected filters

    Orderidentifier Article Number Length mm Pilot Hole Ø mm Unit
    JC6-D-7,5x115 E19 3551082991 115.0 6.0 100

    Specifications

    Length
    115.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC6-D-7,5x115 E19
    Unit
    100
    JC6-D-7,5x135 E19 3551182991 135.0 6.0 100

    Specifications

    Length
    135.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC6-D-7,5x135 E19
    Unit
    100
    JC6-D-7,5x155 E19 3551282991 155.0 6.0 50

    Specifications

    Length
    155.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC6-D-7,5x155 E19
    Unit
    50
    JC6-D-7,5x175 E19 3551382991 175.0 6.0 50

    Specifications

    Length
    175.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC6-D-7,5x175 E19
    Unit
    50
    JC6-D-7,5x195 E19 3551482991 195.0 6.0 50

    Specifications

    Length
    195.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC6-D-7,5x195 E19
    Unit
    50
    JC6-D-7,5x215 E19 3551582991 215.0 6.0 50

    Specifications

    Length
    215.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC6-D-7,5x215 E19
    Unit
    50
    JC6-D-7,5x235 E19 3551682991 235.0 6.0 50

    Specifications

    Length
    235.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC6-D-7,5x235 E19
    Unit
    50
    JC6-D-7,5x255 E19 3551782991 255.0 6.0 50

    Specifications

    Length
    255.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC6-D-7,5x255 E19
    Unit
    50
    JC6-D-7,5x275 E19 3551883991 275.0 6.0 50

    Specifications

    Length
    275.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC6-D-7,5x275 E19
    Unit
    50
    JC6-D-7,5x295 E19 3551982991 295.0 6.0 50

    Specifications

    Length
    295.0
    Pilot Hole Ø
    6.0
    Orderidentifier
    JC6-D-7,5x295 E19
    Unit
    50
