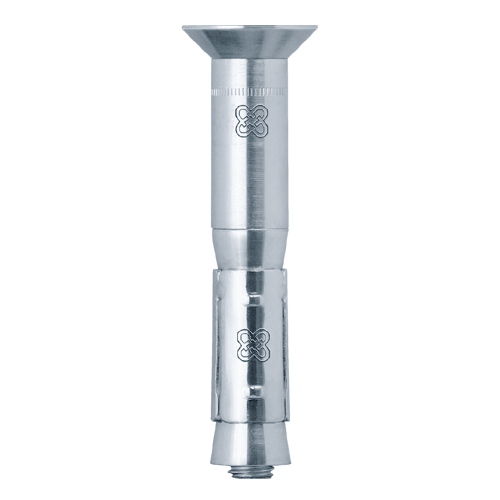

LIEBIG® Safety Bolt SK ZN

Sicherheitsd?bel SK ZN

Specification

  • Applications

    • Fixing down of Steel Baseplates, Columns and Structural steel beams.

  • Properties

    • Carbon steel zinc plated

  • Technical specifications

    • Carbon steel zinc plated
    • ETA approved for cracked and non cracked concrete
    • Countersunk head
    • Thread size M6 to M16.
Orderidentifier Article Number Thread diameter mm Clamp thickness mm Material Unit
SK M6-10/45/6 9650045406 10.0 6.0 Carbon Steel

Specifications

Thread diameter
10.0
Clamp thickness
6.0
Material
Carbon Steel
Orderidentifier
SK M6-10/45/6
Unit
