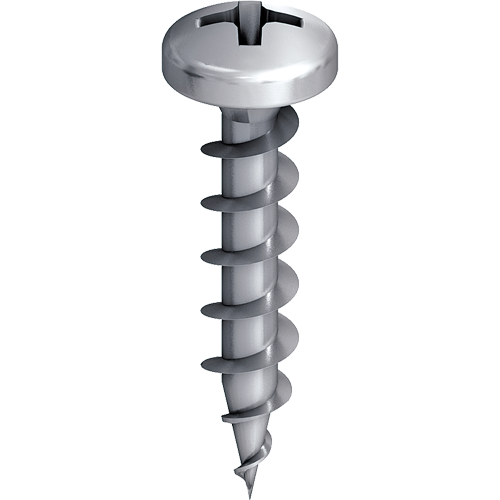

EJOT® window screw type E/Zyl.

Fensterbauschraube_Typ_E-Tyl-4-2xL

Specification

  • Applications

    • Fixing of, for example, top shutter boxes and sheathing

  • Properties

    • Case-hardened steel

  • Technical specifications

    • Head diameter: 7.5 mm
    • Drive: cross recess PH 2
    • Thread type: single-start screw thread

Filter

Selected filters

    Orderidentifier Article Number ø mm Length mm Material Drive Unit
    Window screw E/Zyl. 4.2x16 2234416601 4.2 16.0 Zinc plated, blue passivated Phillips PH 2 1000

    Specifications

    ø
    4.2
    Length
    16.0
    Material
    Zinc plated, blue passivated
    Drive
    Phillips PH 2
    Orderidentifier
    Window screw E/Zyl. 4.2x16
    Unit
    1000
    Window screw E/Zyl. 4.2x30 2234430601 4.2 30.0 Zinc plated, blue passivated Phillips PH 2 1000

    Specifications

    ø
    4.2
    Length
    30.0
    Material
    Zinc plated, blue passivated
    Drive
    Phillips PH 2
    Orderidentifier
    Window screw E/Zyl. 4.2x30
    Unit
    1000
    Window screw E/Zyl. 4.2x55 2234455601 4.2 55.0 Zinc plated, blue passivated Phillips PH 2 1000

    Specifications

    ø
    4.2
    Length
    55.0
    Material
    Zinc plated, blue passivated
    Drive
    Phillips PH 2
    Orderidentifier
    Window screw E/Zyl. 4.2x55
    Unit
    1000
