Next generation of concrete screws for higher load-bearing capacity

EJOT® concrete screws JC2 Plus with optimized thread geometry

Established all-rounder in even better quality

With the JC2 Plus, the established concrete screw JC2 got an even more powerful successor. The load-bearing capacity values in cracked and non-cracked concrete have been significantly increased compared to the predecessor. Due to an optimised tip geometry, the new JC2 Plus is still easy to install. With two embedment depths per size, the JC2 Plus also offers more flexibility for demanding applications (covered by ETA-21/0020). With the newly launched size 14 mm, the portfolio has been expanded at the same time.

The advantages of the concrete screw JC2 Plus at a glance

  • Very easy and quick installation
  • Immediate load-bearing capacity (no curing times)
  • Virtually no expansion forces
  • No special tools required
  • Ideal for fixings close to the edge
  • Removable


Applications

  • Facade scaffolds
  • Temporary fixings
  • Supports
  • Shelves
  • Cable racks
  • Hand rails
  • Battens
  • Shuttering

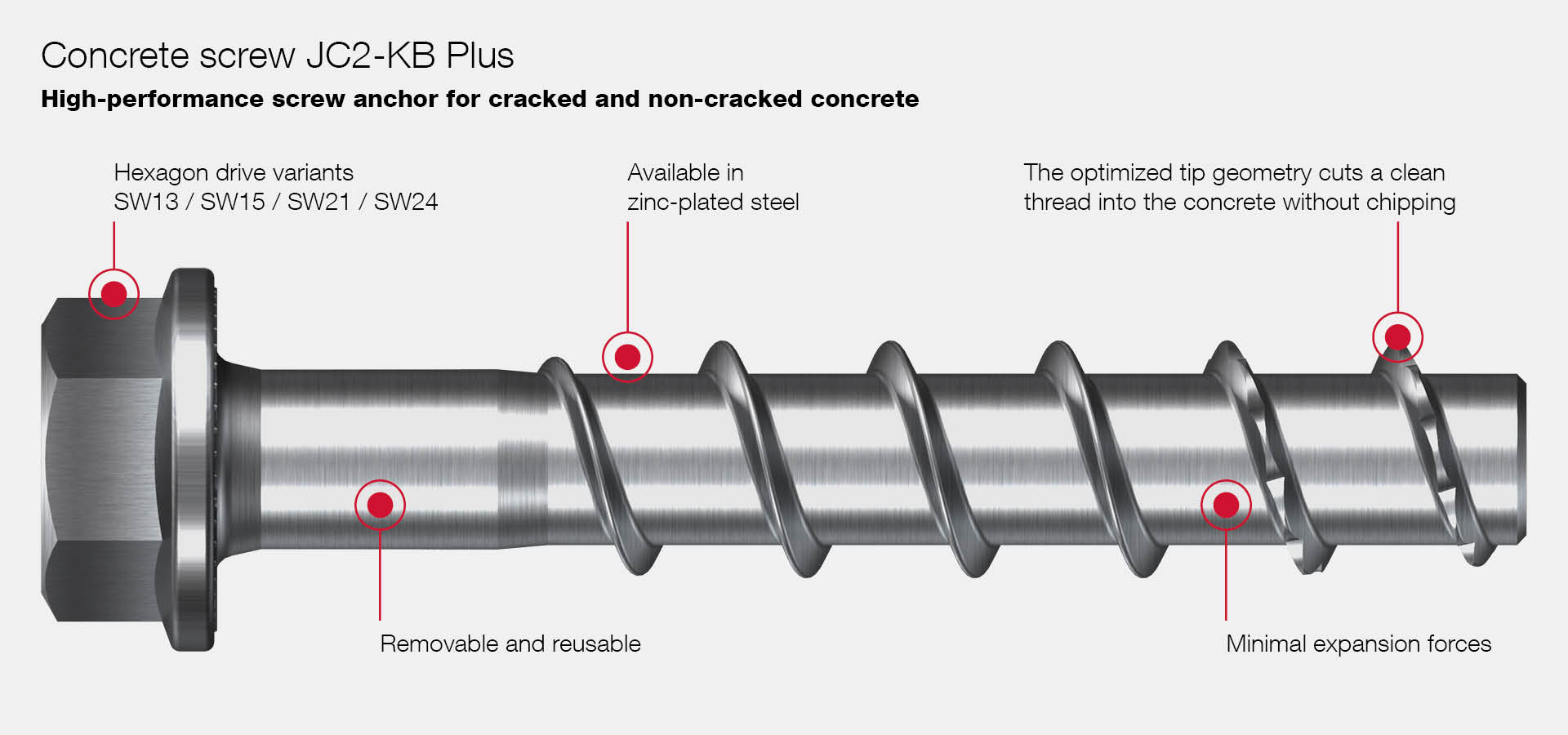

Features JC2 Plus
Concrete screws are known as all-rounders. They are installed directly through the attachment in the base material. By doing so, the thread cuts into the concrete, creating a mechanical interlock within the total embedment depth. During installation, there are almost no expansion forces, which is beneficial for temporary fixings close to the edge. Another advantage: concrete screws are removable.


Product details

  • Available in galvanized steel or with the zinc alloy coating C1000-ZA
  • ​​​​​​​ETA-approved concrete screw for cracked and non-cracked concrete
  • Self-tapping screw anchors for push-through installations
  • Virtually no expansion forces result in small edge distances and spacings
  • For dry indoor use
  • Two embedment depths
YOU ARE INTERESTED IN EJOT CONCRETE SCREWS?

You are welcome to write us a mail.


Further information about EJOT Concrete screw can also be found in the brochure and in the additional documents
​​​​​​​​​​​​​​


More details of EJOT® concrete screw JC2 Plus


EJOT® concrete screw JC2-KB Plus 8


MORE


EJOT® concrete screw JC2-KB Plus 10


MORE


EJOT® concrete screw JC2-KB Plus 14


MORE

Product portfolio concrete screws

As a fastening specialist, EJOT offers a wide range of concrete screws for use in cracked and non-cracked concrete.
