EJOFAST® self-drilling screw JF6-FR-2-5,5

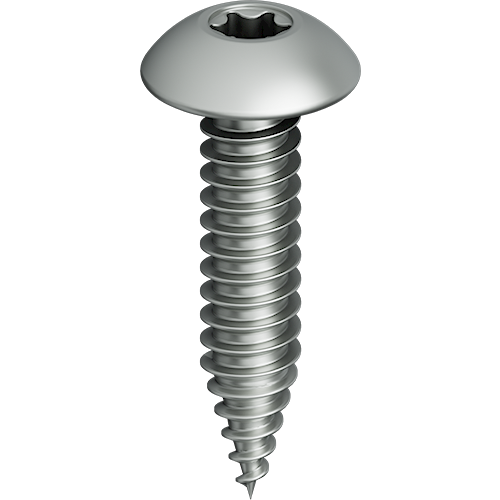

JF6-FR-2-5,5x25-500x500px-Pos2

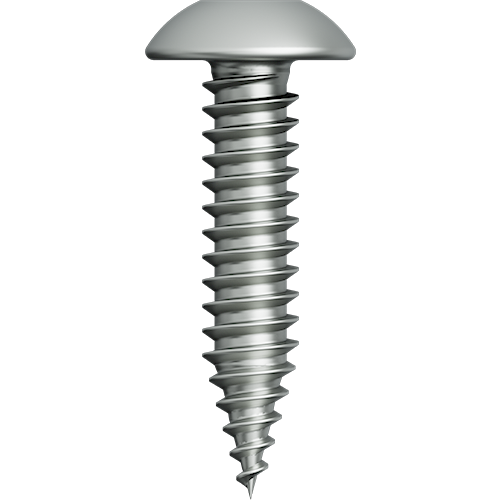

JF6-FR-2-5,5x25-500x500px-Pos1

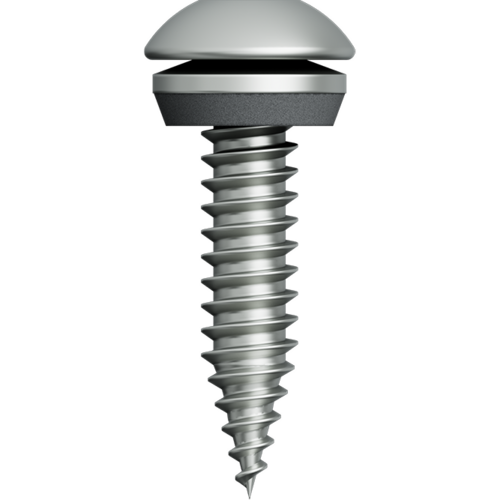

JF6-FR-2-5,5x25-E11-500x500px-Pos1

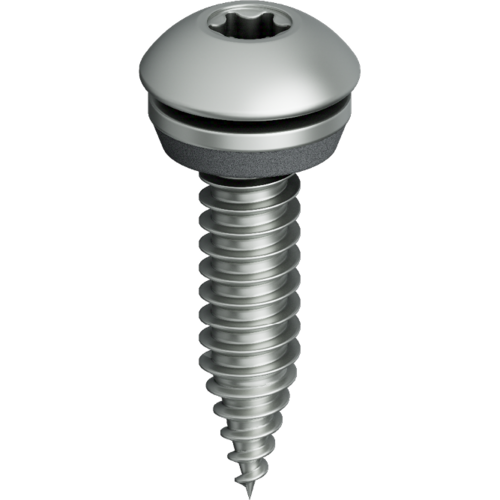

JF6-FR-2-5,5x25-E11-500x500px-Pos2

Specification

  • Applications

    • Fastening components and brackets to thin-walled metal profiles for photovoltaic installations:
    • Fastening trapezoidal sheet flashings, clips for fixing standing seam systems or pre-punched retainers to thin-walled steel substructures (e.g. profiled sheets)
    • Fixing wind deflector sheets to profiled elements

  • Properties

    • A4 stainless steel with hardened drill point
    • Stainless steel sealing washer
    • Pre-assembled sealing washer
    • Non-kid application
    • Fastening with reduced swarf
    • Excellent gripping properties
    • With truss head

  • Technical specifications

    • Diameter: 5.5 mm
    • Drill capacity tI + tII: 1.0 + 1.0 mm
    • Drive: Hexalobular drive T25
    • Installation rotation speed: max. 1800 rpm

Filter

Selected filters

    Orderidentifier Article Number Unit
    JF6-FR-2-5,5x25 E11 3592392991 500

    Specifications

    Orderidentifier
    JF6-FR-2-5,5x25 E11
    Unit
    500
    JF6-FR-2-5,5x25 7384220331 500

    Specifications

    Orderidentifier
    JF6-FR-2-5,5x25
    Unit
    500
