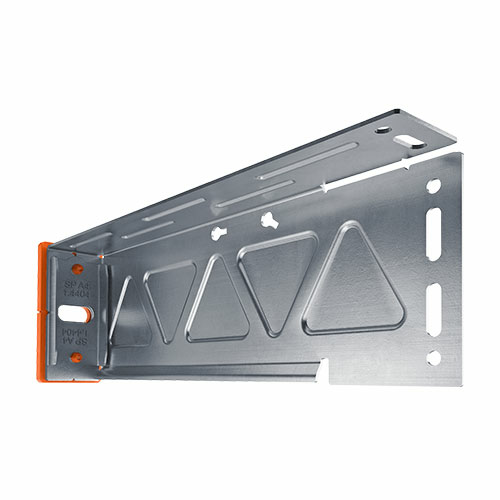

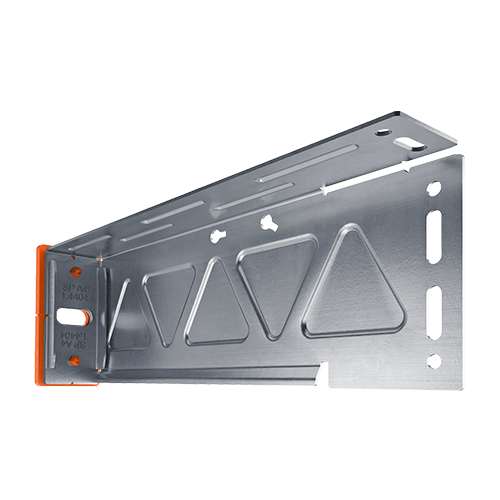

CROSSFIX® Console K1 A4
Specification
-
Applications

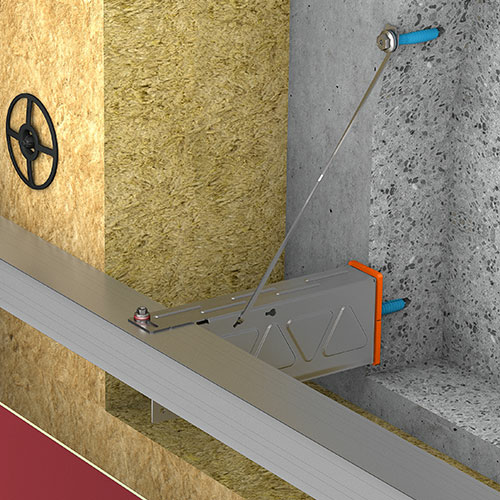

- Fastening of horizontal and vertical support profiles
-
Properties
- A4 stainless steel (1.4404)
- Pressure plate and thermal stop, captive pre-assembled
- Reach 80-400 mm in 20 mm steps, larger reach possible (plus adjustment zone and profile = approx. 5000 mm)
- ETA Aproval: ETA-21-0756 + ETA-24-0547
-
Technical specifications
- Universal purpose
- Thermally separated
- Reduction in thermal conductivity
Filter
Selected filters
| Orderidentifier | Article Number | Length mm | Unit |
|---|---|---|---|
| CF Konsole K1 A4 80mm ass. + TS/SP | 8800002089 | 85.0 | |
Specifications
|
|||
| CF Konsole K1 A4 100mm ass. + TS/SP | 8800002109 | 105.0 | |
Specifications
|
|||
| CF Konsole K1 A4 120mm ass. + TS/SP | 8800002129 | 125.0 | |
Specifications
|
|||
| CF Konsole K1 A4 140mm ass. + TS/SP | 8800002149 | 145.0 | |
Specifications
|
|||
| CF Konsole K1 A4 160mm ass. + TS/SP | 8800002169 | 165.0 | |
Specifications
|
|||
| CF Konsole K1 A4 180mm ass. + TS/SP | 8800002189 | 185.0 | |
Specifications
|
|||
| CF Konsole K1 A4 200mm ass. + TS/SP | 8800002209 | 205.0 | |
Specifications
|
|||
| CF Konsole K1 A4 220mm ass. + TS/SP | 8800002229 | 225.0 | |
Specifications
|
|||
| CF Konsole K1 A4 240mm ass. + TS/SP | 8800002249 | 245.0 | |
Specifications
|
|||
| CF Konsole K1 A4 260mm ass. + TS/SP | 8800002269 | 265.0 | |
Specifications
|
|||
| CF Konsole K1 A4 280mm ass. + TS/SP | 8800002289 | 285.0 | |
Specifications
|
|||
| CF Konsole K1 A4 300mm Ass. + TS/SP | 8800002309 | 305.0 | |
Specifications
|
|||
| CF Konsole K1 A4 320mm ass. + TS/SP | 8800002329 | ||
Specifications
|
|||
| CF Konsole K1 A4 340mm Ass. + TS/SP | 8800002349 | 345.0 | |
Specifications
|
|||
| CF Konsole K1 A4 360mm ass. + TS/SP | 8800002369 | 365.0 | |
Specifications
|
|||
| CF Konsole K1 A4 380mm Ass. + TS/SP | 8800002389 | 385.0 | |
Specifications
|
|||
| CF Konsole K1 A4 400mm ass. + TS/SP | 8800002409 | 405.0 | |
Specifications
|
