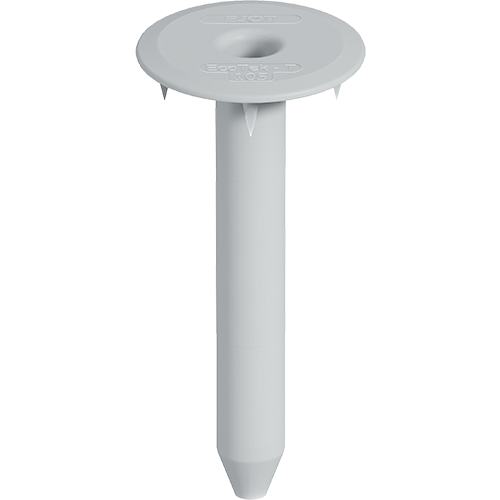

EcoTek-T-50

Specification

  • Applications

    • To fix roofing membrane to substructures made of concrete, aerated concrete, trapezoidal steel profiles, timber and wood-based materials
    • For special requirements of resistance to imposed loads
    • To reduce thermal bridges
  • Properties

    • High-grade plastic material
    • Four additional teeth under the head ensure a maximum fixing of the roofing membrane
    • Telescope design for resistance to imposed loads
    • For insulation material thicknesses up to 590 mm (with FBS-R and JBS-R) and up to 605 mm (with TKR)
    • Telescope design, prevents screw head protrusion due to foot traffic even with soft insulating material
    • Conforms to the requirements according to VOB and the application class K2 according to DIN 18531 regarding corrosion resistance
  • Note

    • In combination with EJOT Dabo® screws / with concrete and aerated concrete screws

Filter

Selected filters

    Orderidentifier Article Number Length mm Recess Depth mm Unit
    8596065007 65.0 55.0 1300

    Specifications

    Length
    65.0
    Recess Depth
    55.0
    Orderidentifier
    Unit
    1300
    8596085007 85.0 75.0 1000

    Specifications

    Length
    85.0
    Recess Depth
    75.0
    Orderidentifier
    Unit
    1000
    8596105007 105.0 95.0 800

    Specifications

    Length
    105.0
    Recess Depth
    95.0
    Orderidentifier
    Unit
    800
    8596135007 135.0 125.0 600

    Specifications

    Length
    135.0
    Recess Depth
    125.0
    Orderidentifier
    Unit
    600
    8596165007 165.0 155.0 450

    Specifications

    Length
    165.0
    Recess Depth
    155.0
    Orderidentifier
    Unit
    450
    8596195007 195.0 185.0 350

    Specifications

    Length
    195.0
    Recess Depth
    185.0
    Orderidentifier
    Unit
    350
    8596225007 225.0 215.0 300

    Specifications

    Length
    225.0
    Recess Depth
    215.0
    Orderidentifier
    Unit
    300
