EJOT Iso-Dart

Specification

  • Applications

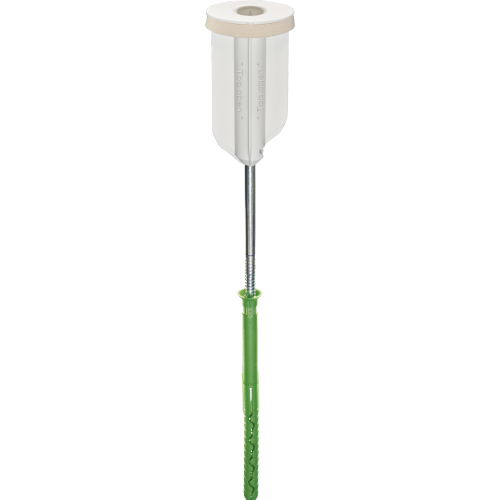

    The EJOT Iso-Dart is a constructive fastening system comprising one installation bush made of plastic including sealing washer and one facade anchor (Ø 8 mm).



    EJOT Iso-Dart comprising:

    • 1 installation bush
    • 1 sealing washer
    • 1 EJOT facade anchor
  • Properties

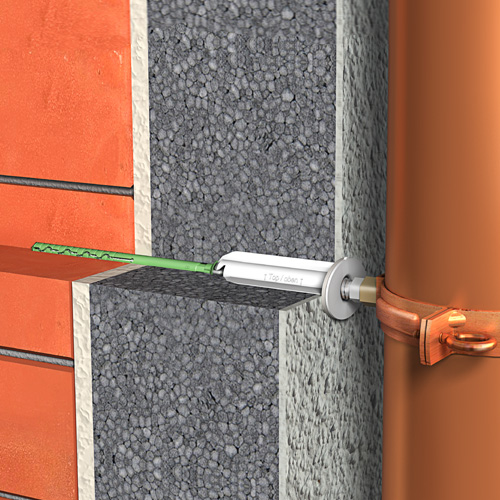

    EJOT Iso-Dart for retrofitting light to medium heavy mounted parts to ETICS facades made of EPS, mineral wool and mineral foam.

    With the EJOT Iso-Dart add-on parts can be mounted by taking up common coarse thread screws Ø 9 mm or hanger bolts Ø 9 mm with neck thread M10, e.g.:

    • Downpipe brackets
    • Signs and billboards
    • Folding shutter locking mechanism
    • Lamps
    • etc.
  • Technical specifications

    • High load-bearing capacity by anchoring to the substrate
    • Reduces the thermal transmission by thermal decoupling
      (Chi value 0,002 W/K acc. to TR025)
    • Waterproofing against the plaster shell with high-quality EPDM seal
      Inspection of the resistance to driving rain in accordance with DIN EN 12155
    • Easy and quick installation
One installation bit per package provided

Filter

Selected filters

    Orderidentifier Article Number Unit
    EJOT Iso-Dart 80 8500080440 10

    Specifications

    Orderidentifier
    EJOT Iso-Dart 80
    Unit
    10
    EJOT Iso-Dart 100 8500100440 10

    Specifications

    Orderidentifier
    EJOT Iso-Dart 100
    Unit
    10
    EJOT Iso-Dart 120 8500120440 10

    Specifications

    Orderidentifier
    EJOT Iso-Dart 120
    Unit
    10
    EJOT Iso-Dart 140 8500140440 10

    Specifications

    Orderidentifier
    EJOT Iso-Dart 140
    Unit
    10
    EJOT Iso-Dart 160 8500160440 10

    Specifications

    Orderidentifier
    EJOT Iso-Dart 160
    Unit
    10
    EJOT Iso-Dart 180 8500180440 10

    Specifications

    Orderidentifier
    EJOT Iso-Dart 180
    Unit
    10
    EJOT Iso-Dart 200 8500200440 10

    Specifications

    Orderidentifier
    EJOT Iso-Dart 200
    Unit
    10
    EJOT Iso-Dart 220 8500220440 10

    Specifications

    Orderidentifier
    EJOT Iso-Dart 220
    Unit
    10
    EJOT Iso-Dart 240 8500240440 10

    Specifications

    Orderidentifier
    EJOT Iso-Dart 240
    Unit
    10
    EJOT Iso-Dart 260 8500260440 10

    Specifications

    Orderidentifier
    EJOT Iso-Dart 260
    Unit
    10
