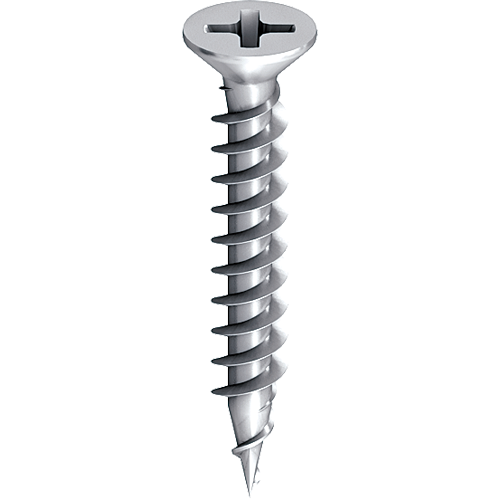

EJOT® window screw type S

Fensterbohrschraube Typ S
Produktbild2

Specification

  • Applications

    • Fastening of tilt and turn fittings in regular and thin-walled PVC profiles and in steel or GRP inserts
    • Fixing locking plates, strips and bearings

  • Properties

    • Classic screw for fittings, technically leading, with double-start thread
    • The optimum also in thin-walled profiles
    • Optimum stripping torques and pull-out values in PVC
    • Roll-sorted quality for automated fastening
    • Case-hardened steel

  • Technical specifications

    Head diameter: 7.3 mm

    Drive: cross recess PH 2

    Thread type: double-start thread
