EJOT® window screw type S/Tg

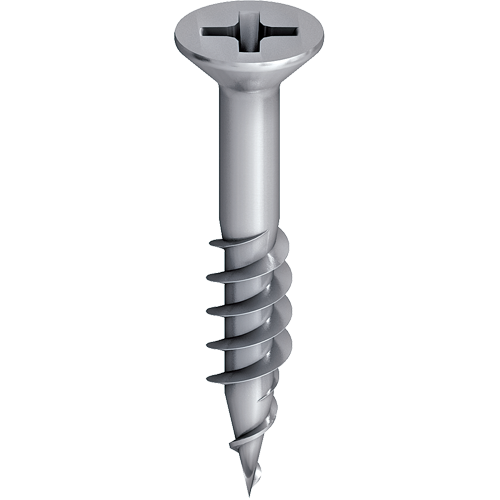

Fensterbauschraube_Typ-S-TG-4x25
Produktbild2

Specification

  • Applications

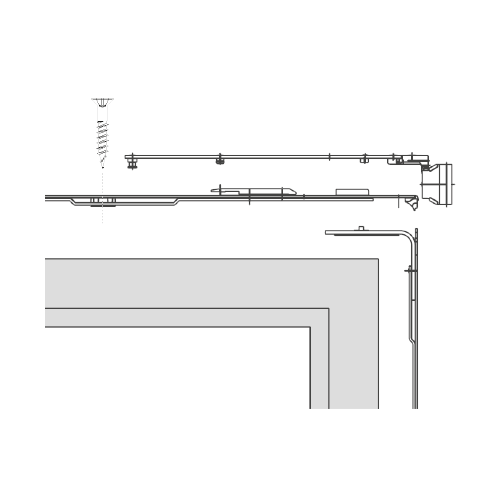

    • Fixing gear rack and baffle gear

  • Properties

    The threadless area minimises:

    • The friction at the joint of gear rack / baffle gear
    • Permanent, easy opening and closing of the window is ensured
    • Case-hardened steel

  • Technical specifications

    • Head diameter: 7.3 mm
    • Drive: cross recess PH 2
    • Thread type: double-start thread
Orderidentifier Article Number ø mm Length mm Material Drive Unit
Window screw Type S/TG 4.2x25 2232325607 4.2 25.0 EJOSEAL Phillips PH 2 1000

Specifications

ø
4.2
Length
25.0
Material
EJOSEAL
Drive
Phillips PH 2
Orderidentifier
Window screw Type S/TG 4.2x25
Unit
1000
